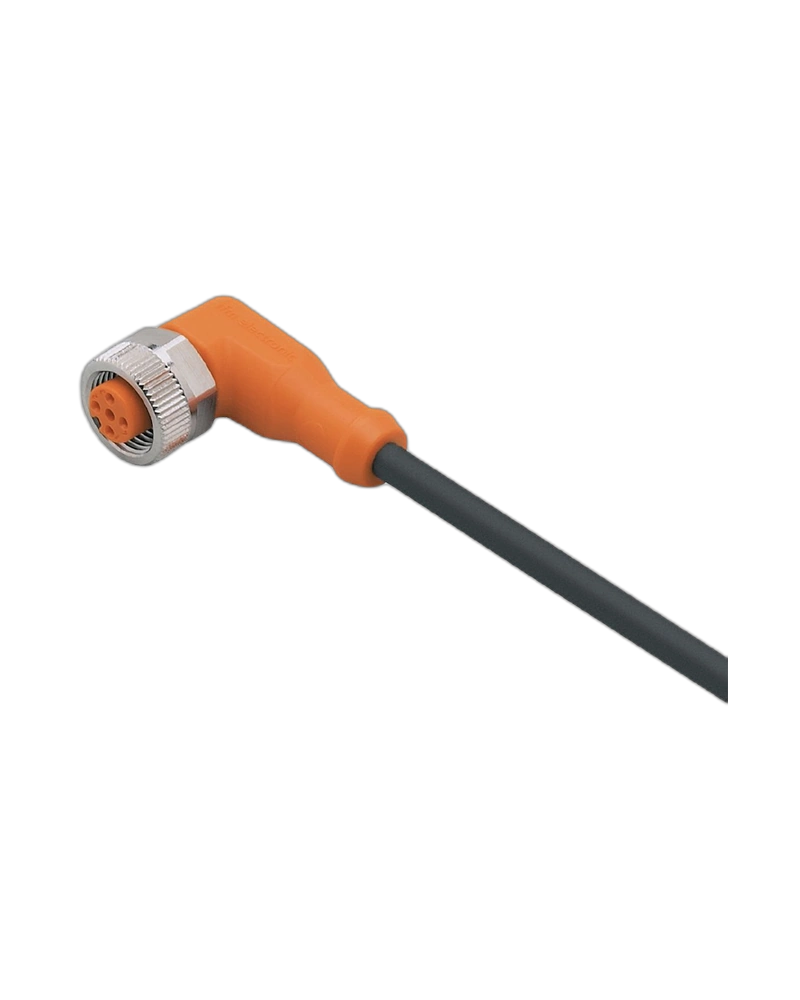

The IFM EVC530 is a 5 m connecting cable with M12 socket designed for dependable industrial sensor connections. Its PUR cable and robust construction provide reliable performance in factory automation and machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 Socket Connection
The EVC530 provides a secure M12 socket connection for compatible industrial sensors. The locking mechanism helps maintain stable electrical connectivity during machine operation.
5 m Cable Length
The 5 m cable provides sufficient reach for many machine and automation installations. It supports flexible routing between field devices and control equipment.
PUR Cable Construction
The PUR cable offers flexibility and mechanical durability for industrial environments. Its halogen-free construction supports reliable use in demanding applications.
Industrial Protection
The cable provides IP65, IP67, IP68 and IP69K protection. It is suitable for environments involving vibration, shock, oils and coolants.
5 m cable length
Reliable M12 socket connection
Durable PUR cable
Gold-plated contacts
High ingress protection
Suitable for drag-chain applications
Industrial automation
Sensor connectivity
Machine tools
Production machinery
Factory control systems
Industrial monitoring
| Specification | Details |
|---|---|
| Product Model | EVC530 |
| Order Code | ADOAH040MSS0005C04 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 straight socket |
| Cable Length | 5 m |
| Cable Material | PUR, Halogen-free |
| Cable Cross Section | 4 x 0.34 mm² |
| Electrical Design | AC/DC |
| Operating Voltage | < 50 V AC / < 60 V DC |
| Maximum Current | 4 A |
| Protection Class | III |
| Protection | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Bending Radius | Min. 10 x cable diameter |
