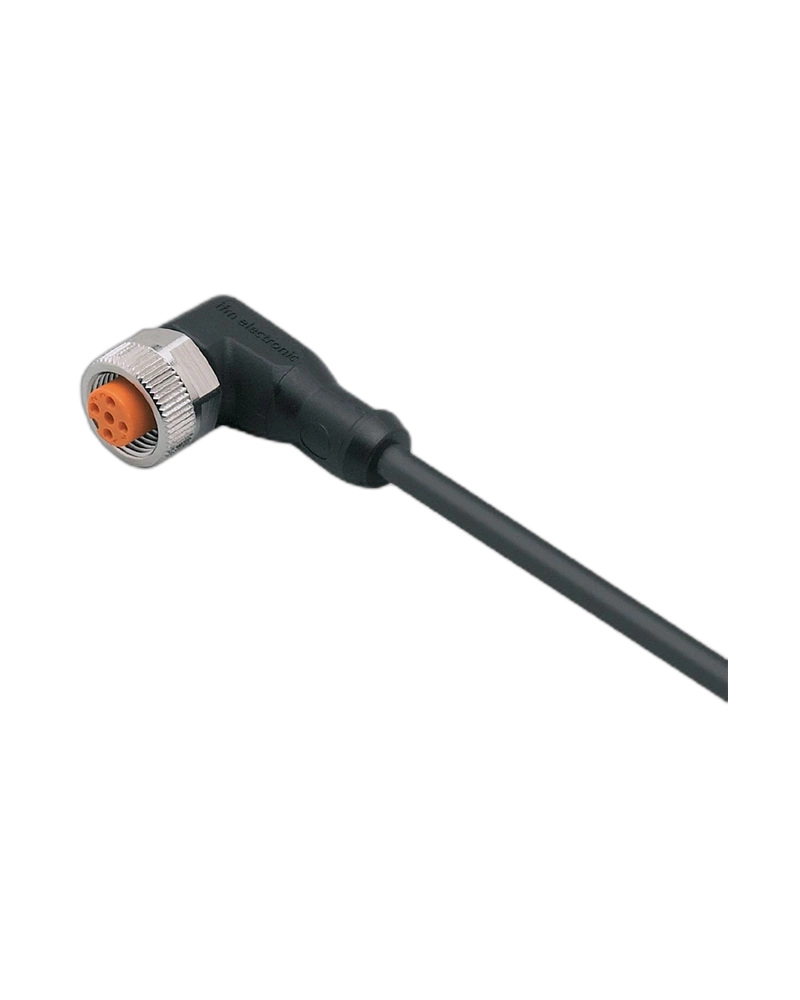

The IFM EVC525 is a 15 m connecting cable with an angled M12 socket designed for reliable industrial sensor and automation connections. Its durable PUR cable and high protection rating make it suitable for demanding machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Socket
The EVC525 features an angled M12 socket that provides flexible cable routing in compact machine installations. The secure locking mechanism helps maintain a stable connection during operation.
Extended Cable Length
The 15 m cable provides extended reach for connecting sensors positioned away from control equipment. It supports organized cable routing across large machines and automation systems.
Durable PUR Construction
The halogen-free PUR cable provides flexibility and mechanical durability for industrial applications. It is suitable for moving installations and cable chain applications.
Industrial Protection
The cable provides IP65, IP67, IP68 and IP69K protection. Its construction supports reliable operation in environments exposed to vibration, shock, oils and coolants.
Reliable angled M12 connection
Extended 15 m cable length
Durable halogen-free PUR cable
Gold-plated contacts
Suitable for drag-chain applications
High resistance to industrial conditions
Industrial sensor connections
Machine automation systems
Factory automation
Production machinery
Machine tools
Industrial control equipment
| Specification | Details |
|---|---|
| Product Model | EVC525 |
| Order Code | ADOAH043MSS0015H04 |
| Product Type | Connecting Cable with Socket |
| Brand | IFM |
| Connector | M12 angled socket |
| Cable Length | 15 m |
| Cable Material | PUR, Halogen-free |
| Cable Cross Section | 4 x 0.34 mm² |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Bending Radius | Min. 10 x cable diameter |
| Bending Cycles | > 5 million |
