The IFM EVC521 is a 12 m connection cable designed for reliable industrial sensor and automation connections. Its M12 plug and angled socket configuration provides flexible installation and dependable signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Connection System

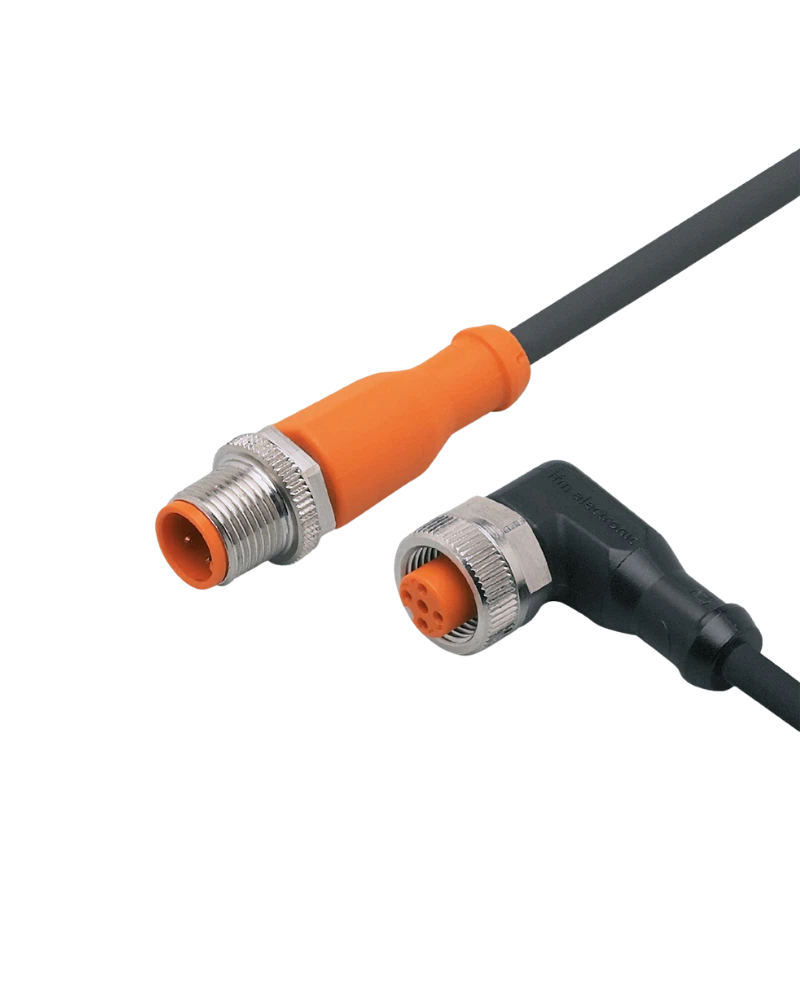

The EVC521 provides an M12 straight plug and angled M12 socket connection. This configuration helps improve cable routing in machines where installation space is limited.
12 m PUR Cable
The 12 m cable provides extended reach for industrial installations. Its PUR construction offers flexibility and durability for demanding automation environments.
Secure Electrical Contact
Gold-plated contacts provide dependable electrical connectivity. The locking mechanism helps prevent unwanted disconnection caused by vibration and machine movement.
Industrial Protection
The EVC521 provides IP65, IP67, IP68 and IP69K protection. It is designed to withstand oils, coolants, vibration and shock.
Extended 12 m cable length
Straight plug and angled socket arrangement
Gold-plated contacts
Oil and coolant resistance
High protection rating
Suitable for cable chain applications
Industrial automation systems
Machine tools
Sensor connections
Production machinery
Factory automation
Industrial control systems
| Specification | Details |
|---|---|
| Product Model | EVC521 |
| Order Code | VDOAH043MSS0012H04STGH040MSS |
| Product Type | Connection Cable |
| Brand | IFM |
| Connection | 1 x M12 straight plug / 1 x M12 angled socket |
| Cable Length | 12 m |
| Cable Material | PUR |
| Cable Cross Section | 4 x 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Maximum Current | 4 A |
| Electrical Design | PNP |
| Protection Class | II |
| Protection | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Bending Radius | Min. 10 x cable diameter |
| Bending Cycles | > 5 million |
