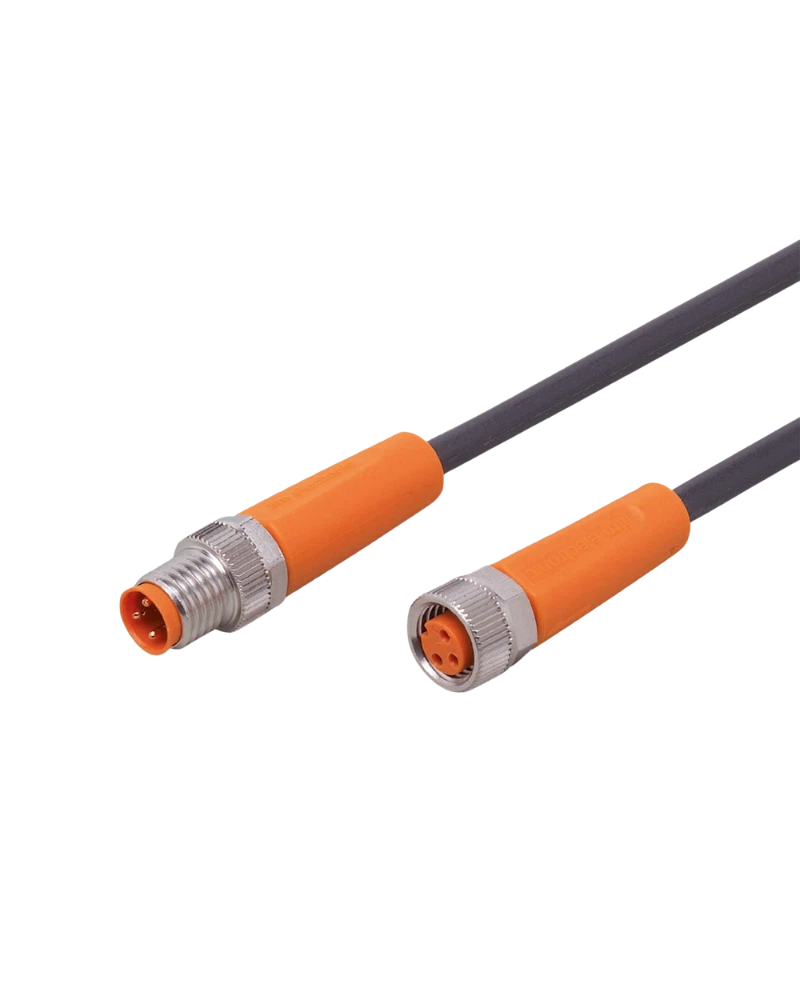

The IFM EVC518 is a 15 m connection cable designed for reliable industrial automation applications. Its M8 plug and M12 socket arrangement provides flexible connectivity for sensors and automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Flexible Connection Interface
The EVC518 provides an M8 plug to M12 socket connection for compatible industrial equipment. It helps connect field devices with different connector interfaces.
15 m Cable Length
The extended 15 m cable length provides flexibility for larger machines and installations where devices are positioned away from control equipment.
Durable PUR Cable
The PUR cable construction provides good flexibility and mechanical durability. It is suitable for continuous industrial operation and moving cable applications.
Harsh Environment Protection
The EVC518 is resistant to oils and coolants and offers high ingress protection. Its locking mechanism helps protect the connection from vibration and shock.
Extended 15 m cable length
M8 plug and M12 socket connection
Reliable industrial signal transmission
Oil and coolant resistance
High ingress protection
Suitable for cable chain applications
Industrial automation systems
Machine control equipment
Sensor connections
Production machinery
Factory automation
Industrial monitoring systems
| Specification | Details |
|---|---|
| Product Model | EVC518 |
| Order Code | VDOGF030MSS0015H03STGF030MSS |
| Product Type | Connection Cable |
| Brand | IFM |
| Connection | M8 plug / M12 socket |
| Cable Length | 15 m |
| Cable Material | PUR |
| Operating Voltage | < 50 V AC / < 60 V DC |
| Maximum Current | 3 A |
| Protection Class | III |
| Protection | IP65, IP67, IP68, IP69K |
| Ambient Temperature | -25 to 90 °C |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Bending Radius | Min. 10 x cable diameter |
| Bending Cycles | > 5 million |
