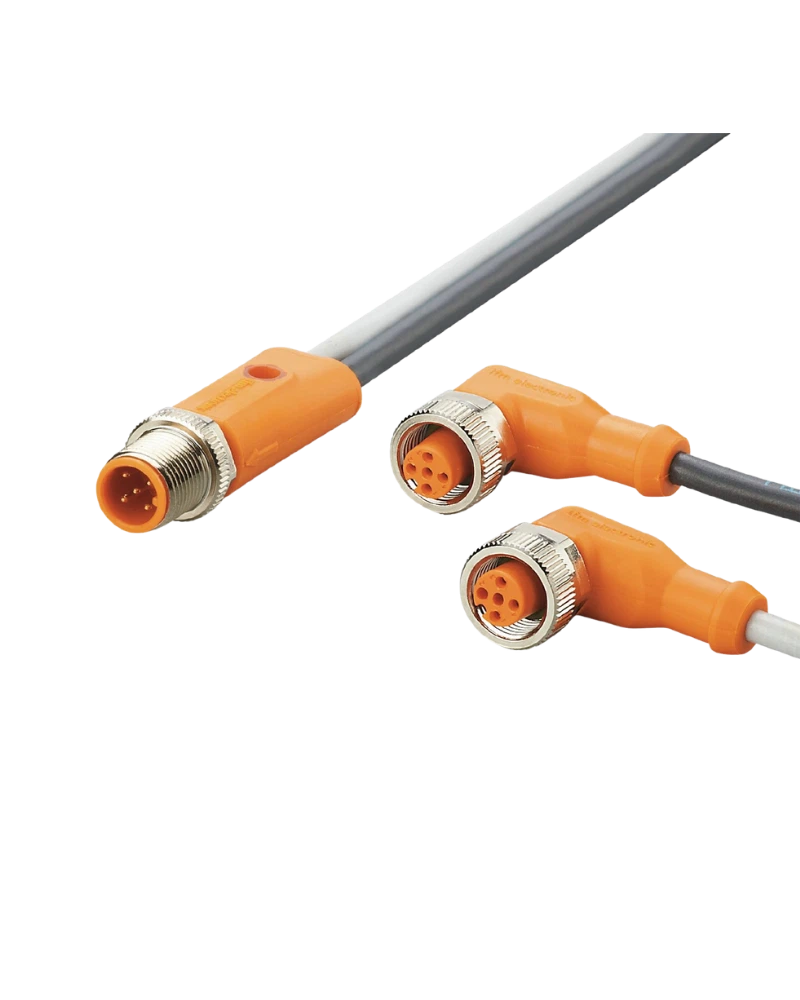

The IFM EVC503 is a Y connection cable designed to connect multiple compatible devices within industrial automation systems. It provides a practical M12 connection arrangement for sensor and signal distribution applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Y Connection Design
The EVC503 provides a Y-shaped connection arrangement that allows compatible devices to be connected through a common connection point. This helps simplify wiring in automation installations.
M12 Connectivity
The cable uses M12 connections with gold-plated contacts for dependable electrical performance. The secure locking arrangement helps maintain stable connections during machine operation.
Flexible Cable Construction
The cable uses PUR construction and is designed for industrial environments. Its flexible design supports installation around machinery and equipment.
Dynamic Application Support
The EVC503 is suitable for applications involving cable movement. Its construction supports repeated bending and provides reliable performance in automation environments.
Practical Y connection arrangement
M12 plug and socket connectivity
Gold-plated contacts
PUR cable construction
Suitable for moving cable applications
High industrial protection
Industrial sensor connections
Automation wiring systems
Machine control equipment
Signal distribution applications
Production machinery
Factory automation systems
| Specification | Details |
|---|---|
| Product Model | EVC503 |
| Product Type | Y connection cable |
| Order Code | YDOAHXX0MSS0,25HXXSTGH050MSS |
| Brand | IFM |
| Connection | M12 / 2 x M12 |
| Cable Length | 0.25 m |
| Cable Material | PUR |
| Operating Voltage | 10–30 V DC |
| Protection | IP65, IP67, IP68, IP69K |
| Contact Material | Gold-plated |
| Cable Chain Suitability | Yes |
| Operating Temperature | -25 to 90 °C |
