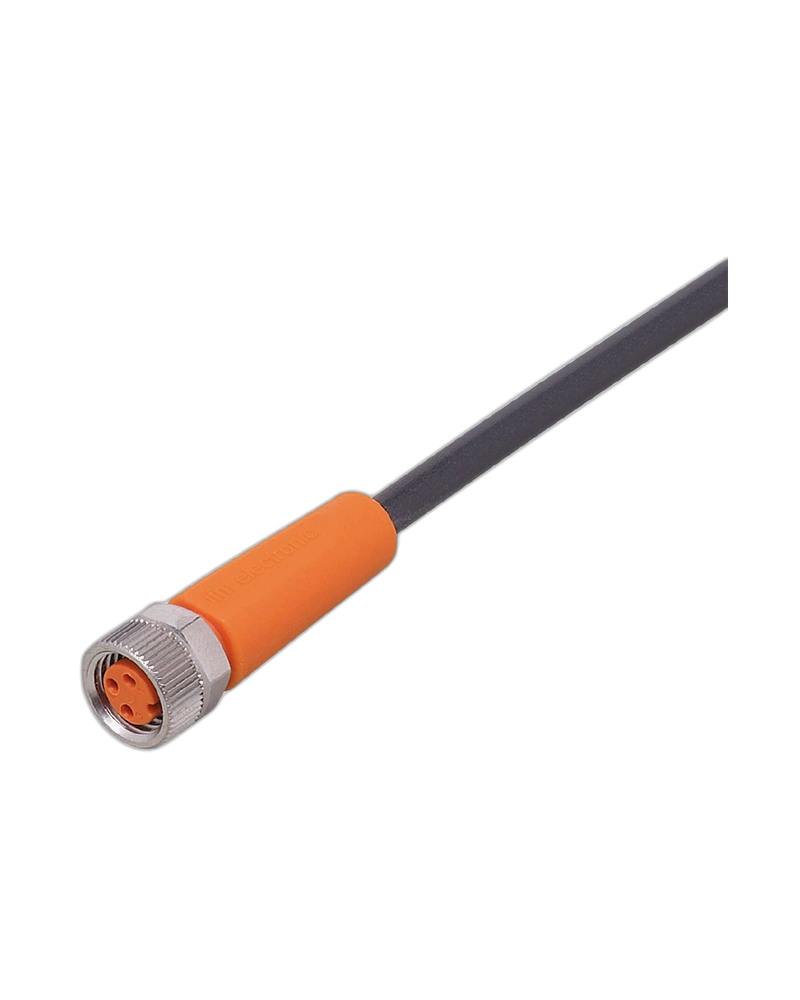

IFM EVC501 is a 20 m connecting cable with a straight 3-pole M8 socket. It is designed for reliable sensor connections in industrial automation systems. The PUR cable is halogen-free and features gold-plated contacts. Its high protection rating allows dependable operation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Sensor Connection
The EVC501 provides a dependable M8 connection for industrial sensors. Its straight connector design supports straightforward installation. Gold-plated contacts improve connection reliability. The 3-core cable supports common sensor connection requirements.
Flexible Industrial Cable
The 20 m PUR cable provides extended reach for machine and factory installations. Its cable construction is designed for industrial use. The TPU connector body provides mechanical durability. The locking mechanism helps prevent accidental disconnection.
Harsh Environment Protection
The EVC501 provides IP65, IP67, IP68 and IP69K protection. It can operate from -25 to 90°C. The cable is free from silicone and halogens. It is also suitable for drag-chain applications.
M8 3-pole straight socket
20 m PUR cable
3 × 0.25 mm² cable
Gold-plated contacts
Silicone-free and halogen-free
IP65 / IP67 / IP68 / IP69K
3 A current rating
Drag-chain suitable
Industrial automation
Sensor connections
Machine tools
Factory automation
Control and monitoring systems
Industrial machinery
| Specification | Details |
|---|---|
| Product Model | EVC501 |
| Manufacturer | IFM |
| Part Number | ADOGF030MSS0020H03 |
| Product Type | Connecting cable with socket |
| Connector | M8 socket |
| Connector Type | Straight |
| Number of Pins | 3 |
| Cable Length | 20 m |
| Cable Material | PUR |
| Cable Size | 3 × 0.25 mm² |
| Cable Diameter | 3.7 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Nut Material | Brass, nickel-plated |
| Drag Chain Suitable | Yes |
| Weight | Approx. 396.5 g |
