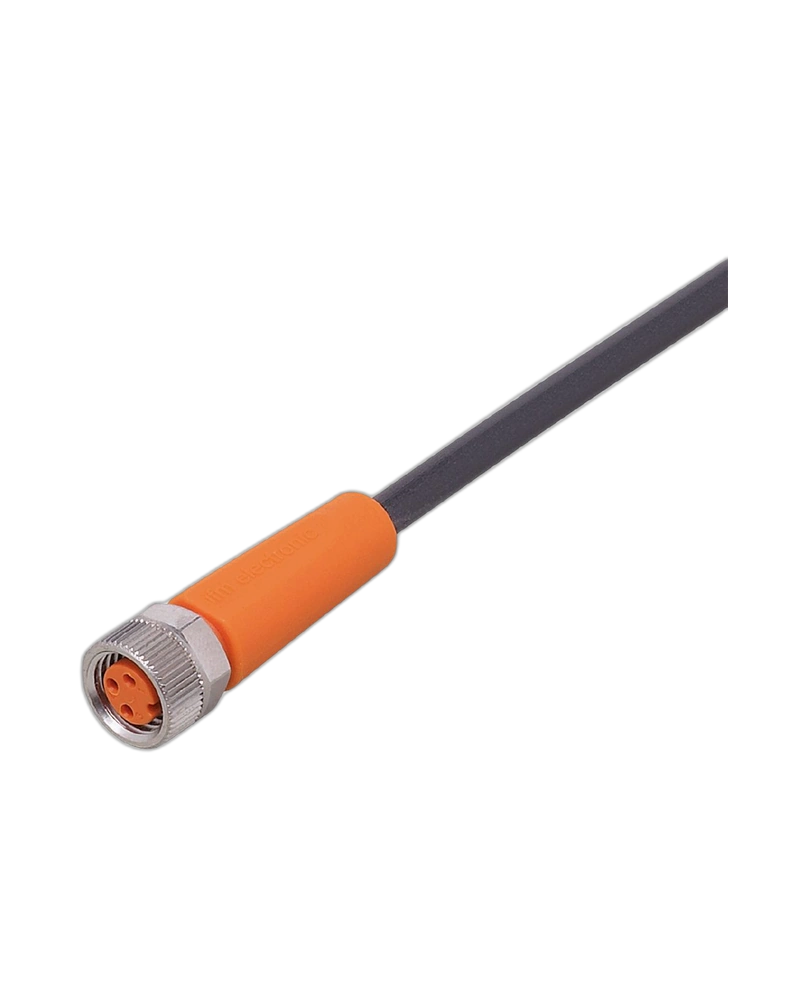

IFM EVC500 is a long-length connecting cable with a straight M8 socket for industrial automation systems. It uses a 45 m PUR cable with four conductors and gold-plated contacts. The cable is designed for reliable sensor and actuator connectivity. Its robust construction provides dependable performance in harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Long-Distance Connectivity
The EVC500 provides a 45 m cable length for installations requiring extended connection distances. Its four-core construction supports suitable M8 sensor and control connections. The straight connector design allows simple installation. It helps reduce the need for additional cable extensions.
Industrial-Grade Cable Design
The PUR cable provides good flexibility and durability for industrial applications. TPU housing and FKM sealing provide additional mechanical protection. Gold-plated contacts support reliable electrical connectivity. The design is suitable for demanding factory environments.
Protection and Reliability
The EVC500 offers IP65, IP67, IP68 and IP69K protection. It is designed for a wide operating temperature range of -25 to 90°C. The cable is silicone-free and halogen-free. These characteristics make it suitable for industrial machinery and automation systems.
M8 4-pole straight socket
45 m cable length
PUR cable construction
4 × 0.25 mm² cable
Gold-plated contacts
Silicone-free and halogen-free
IP65 / IP67 / IP68 / IP69K
3 A current rating
Drag-chain suitable
Factory automation
Industrial sensor connections
Machine tools
Automation control systems
Long-distance sensor wiring
Industrial machinery
| Specification | Details |
|---|---|
| Product Model | EVC500 |
| Manufacturer | IFM |
| Part Number | ADOGF040MSS0045H04 |
| Product Type | Connecting cable with socket |
| Connector | M8 socket |
| Connector Type | Straight |
| Number of Pins | 4 |
| Cable Length | 45 m |
| Cable Material | PUR |
| Cable Size | 4 × 0.25 mm² |
| Cable Diameter | 3.7 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Nut Material | Brass, nickel-plated |
| Drag Chain Suitable | Yes |
