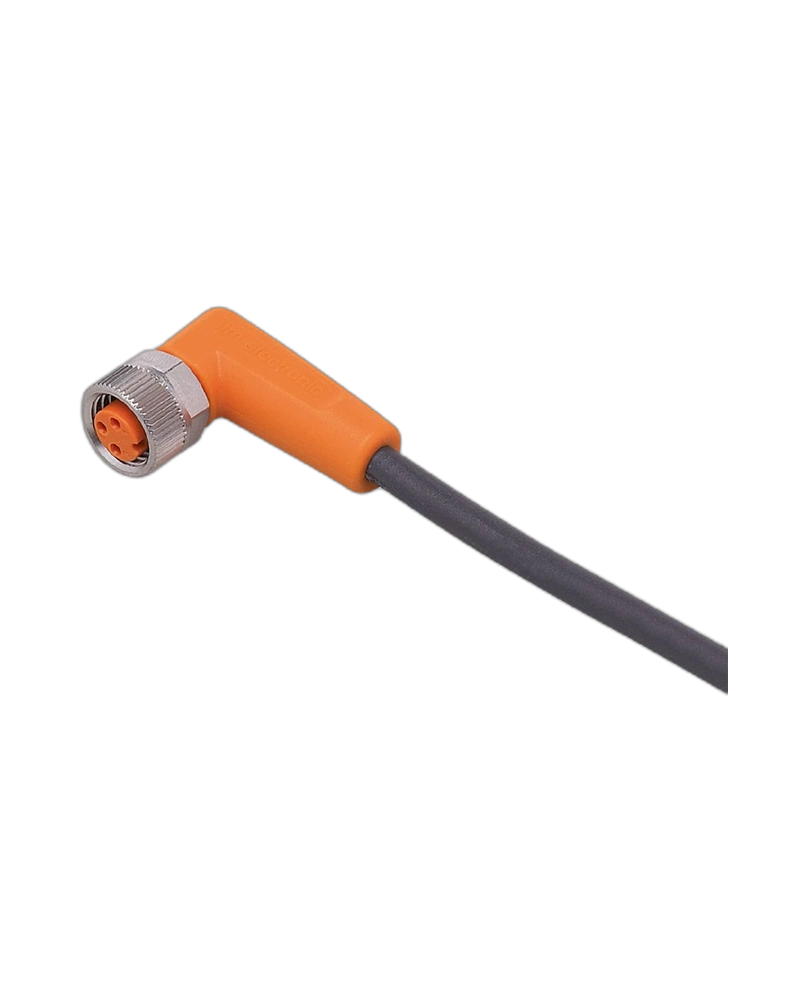

IFM EVC498 is a reliable connecting cable with an angled M8 socket designed for industrial sensor connections. It features a 3 m PUR cable with gold-plated contacts for dependable signal transmission. The cable is silicone-free and halogen-free for industrial environments. Its high IP protection makes it suitable for demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Sensor Connectivity
The EVC498 provides a secure connection for sensors using an M8 connector. Its angled socket design helps simplify installation in compact spaces. Gold-plated contacts support reliable electrical performance. The robust construction is designed for industrial automation applications.
Durable Industrial Construction
The cable uses a flexible PUR jacket with TPU housing and FKM sealing. It is resistant to oils and coolants commonly found in industrial environments. The locking nut provides a secure connection against vibration and shock. Its construction supports dependable long-term operation.
High Environmental Protection
The EVC498 provides IP65, IP67, IP68 and IP69K protection. It operates across a temperature range of -25 to 90°C. The cable is suitable for moving applications and drag-chain installation. This makes it suitable for harsh industrial environments.
M8 3-pole angled socket
3 m PUR cable
Gold-plated contacts
Silicone-free and halogen-free
IP65 / IP67 / IP68 / IP69K protection
50 V AC / 60 V DC operating capability
3 A current rating
Drag-chain suitable
Industrial automation
Sensor and actuator connections
Machine tools
Factory automation
Control panels and machinery
Moving and cable-chain applications
| Specification | Details |
|---|---|
| Product Model | EVC498 |
| Manufacturer | IFM |
| Part Number | ADOAF030MSS0003H03 |
| Product Type | Connecting cable with socket |
| Connector | M8 socket |
| Connector Type | Angled |
| Number of Pins | 3 |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Size | 3 × 0.25 mm² |
| Cable Diameter | 3.7 mm |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Ambient Temperature | -25 to 90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Contact Material | Gold-plated |
| Nut Material | Brass, nickel-plated |
| Drag Chain Suitable | Yes |
| Bending Cycles | >5 million |
