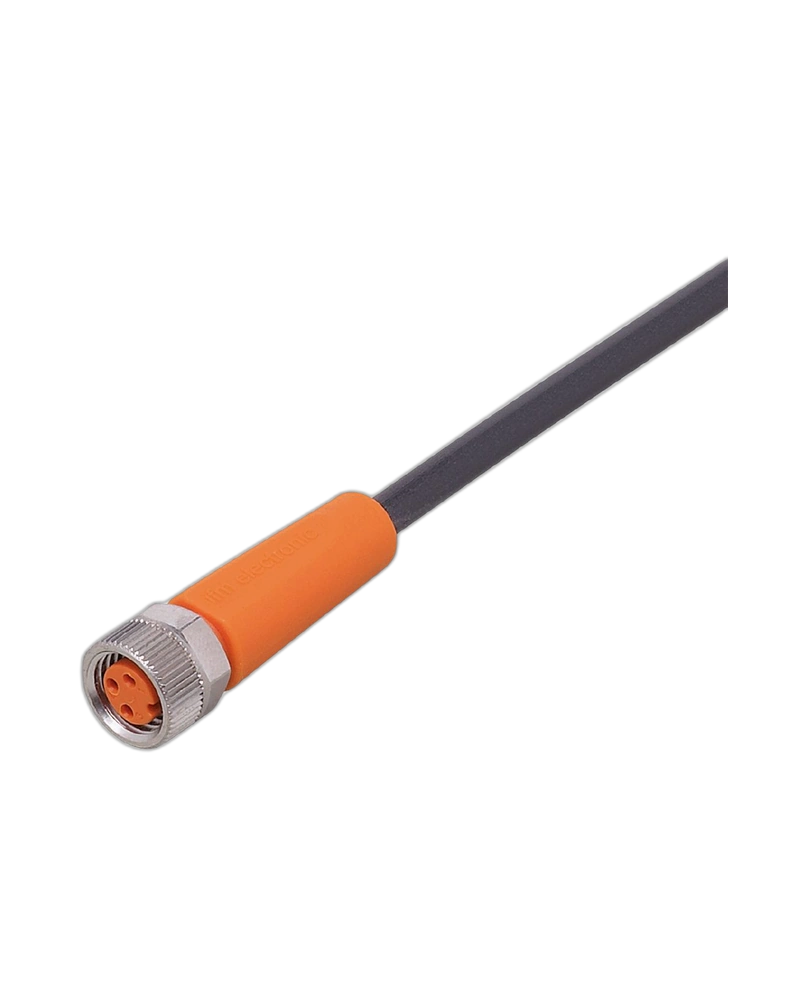

IFM EVC497 is a 3 m connecting cable with a straight M8 socket designed for industrial sensor applications. It features a 3-core PUR cable with gold-plated contacts for dependable electrical connectivity. The cable provides flexibility and resistance to industrial conditions. High IP protection supports reliable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M8 Sensor Connection
EVC497 is designed for sensors equipped with M8 connectors. The straight socket provides convenient and secure connection. Gold-plated contacts support reliable signal transmission. The locking mechanism maintains a stable connection.
3 m PUR Cable
The 3 m cable provides practical reach for machine installations. PUR construction offers flexibility and resistance to mechanical wear. The cable can be routed around machine components. It is suitable for both fixed and moving applications.
Electrical Performance
The cable uses three 0.25 mm² conductors. It supports 50 V AC / 60 V DC and a 3 A current rating. This makes it suitable for many sensor and automation connections. Reliable contact performance supports continuous operation.
Industrial Protection
EVC497 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The cable is free from silicone and halogens. Drag-chain suitability supports moving machinery.
3 m PUR cable
3 × 0.25 mm² conductors
Straight M8 socket
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Viton sealing
Drag-chain suitable
M8 sensor connections
Industrial automation
Machine tools
Factory automation
Sensor monitoring
Production machinery
Robotic equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC497 |
| Manufacturer | IFM |
| Order Code | ADOGF030MSS0003H03 |
| Product Type | Connecting Cable with Socket |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Conductors | 3 × 0.25 mm² |
| Connector | M8 socket |
| Connector Design | Straight |
| Coding | A |
| Contacts | Gold-plated |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing | Viton |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Pack Quantity | 1 pc |
