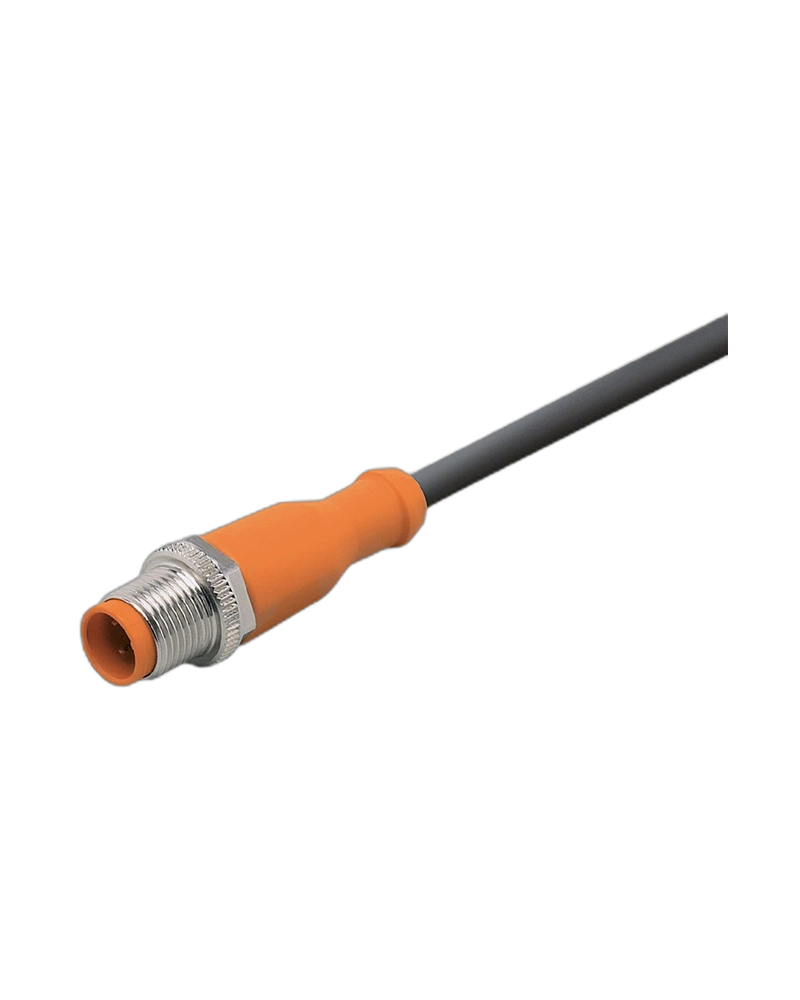

IFM EVC495 is a 5 m connecting cable with an M12 plug designed for industrial automation applications. It features a 3-core PUR cable with gold-plated contacts. The cable provides reliable electrical connectivity and excellent environmental protection. It is suitable for industrial sensors and automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M12 Connection
EVC495 provides a secure connection for M12-compatible industrial components. The straight connector design supports convenient installation. Gold-plated contacts provide reliable signal transmission. The locking mechanism helps maintain stable connectivity.
Durable PUR Cable
The 5 m PUR cable offers useful reach for industrial machinery. Its flexible construction supports organized routing. PUR material provides resistance to mechanical wear. It is suitable for demanding production environments.
Electrical Performance
EVC495 supports 250 V AC / 300 V DC with a 4 A current rating. The three-core cable supports dependable industrial electrical connections. Gold-plated contacts improve contact reliability. The design is suitable for continuous automation operation.
Industrial Protection
The cable provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The construction is halogen-free and silicone-free. It can also be used in suitable drag-chain applications.
5 m PUR cable
3 × 0.34 mm² conductors
M12 plug
Straight design
Gold-plated contacts
250 V AC / 300 V DC
4 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Industrial automation
M12 sensor connections
Machine tools
Factory automation
Production machinery
Robotics
Control systems
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | EVC495 |
| Manufacturer | IFM |
| Order Code | ASTGH030MSS0005H03 |
| Product Type | Connecting Cable with Plug |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Conductors | 3 × 0.34 mm² |
| Connector | M12 plug |
| Connector Design | Straight |
| Coding | A |
| Contacts | Gold-plated |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
