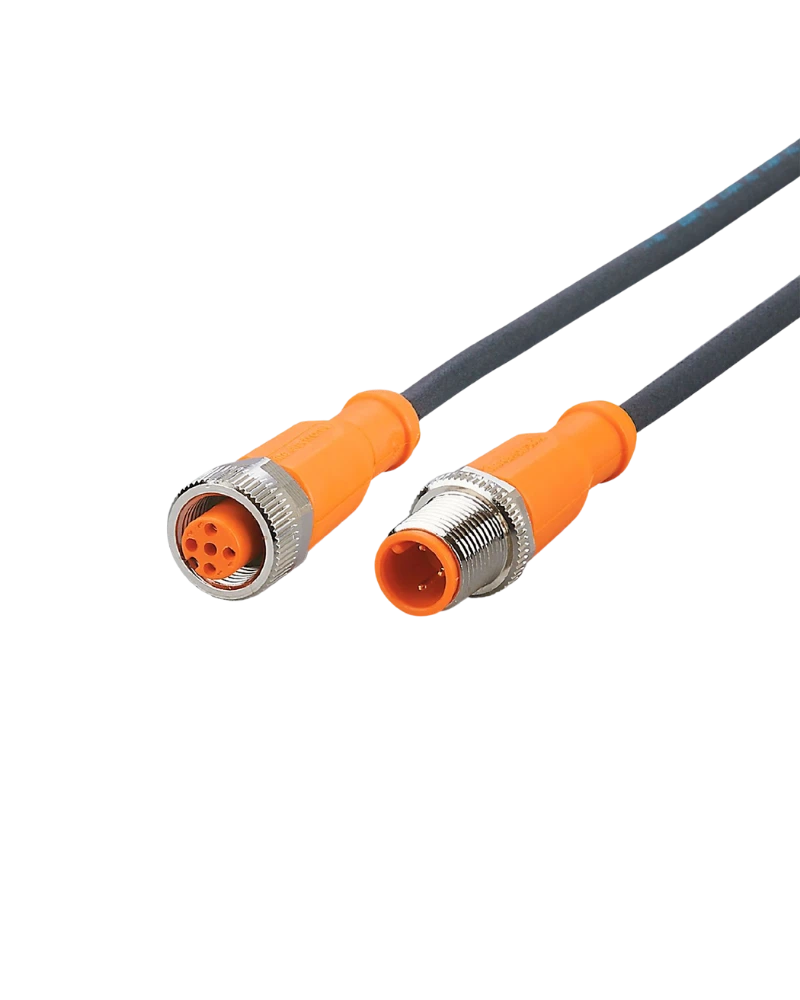

IFM EVC494 is a 15 m M12 connection cable designed for extended industrial automation connections. It features straight M12 plug and socket connectors with gold-plated contacts. The PUR cable provides flexibility and mechanical durability. High IP protection supports reliable operation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended M12 Connectivity
EVC494 provides a reliable connection between M12-compatible automation components. Straight plug and socket connectors simplify installation. Gold-plated contacts support stable signal transmission. Secure locking helps prevent accidental disconnection.
15 m Cable Length
The 15 m cable provides extended reach for large machines and production installations. PUR construction allows flexible cable routing. It provides resistance to mechanical wear. The cable is suitable for industrial automation systems.
Reliable Electrical Performance
The three-core cable supports industrial electrical connections. Its M12 connectors provide secure contact. The cable is designed for dependable machine operation. Gold-plated contacts help maintain signal integrity.
Industrial Protection
The cable offers IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. Halogen-free and silicone-free construction supports industrial use. Drag-chain suitability provides additional installation flexibility.
15 m PUR cable
3 × 0.34 mm² conductors
M12 plug and socket
Straight / straight design
Gold-plated contacts
250 V AC / 300 V DC
4 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Industrial automation
Machine tools
Factory automation
Sensor networks
Production machinery
Robotic systems
Control equipment
Industrial electrical systems
| Specification | Details |
|---|---|
| Product Code | EVC494 |
| Manufacturer | IFM |
| Order Code | VDOGH030MSS0015H03STGH030MSS |
| Product Type | Connection Cable |
| Cable Length | 15 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Conductors | 3 × 0.34 mm² |
| Connector A | M12 plug |
| Connector B | M12 socket |
| Connector Design | Straight / Straight |
| Coding | A |
| Contacts | Gold-plated |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | Viton |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Pack Quantity | 1 pc |
