IFM EVC493 is a 10 m M12 connection cable designed for industrial automation and sensor applications. It features straight M12 plug and socket connectors with gold-plated contacts. The PUR cable provides flexibility and resistance to industrial wear. Its high protection rating makes it suitable for demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

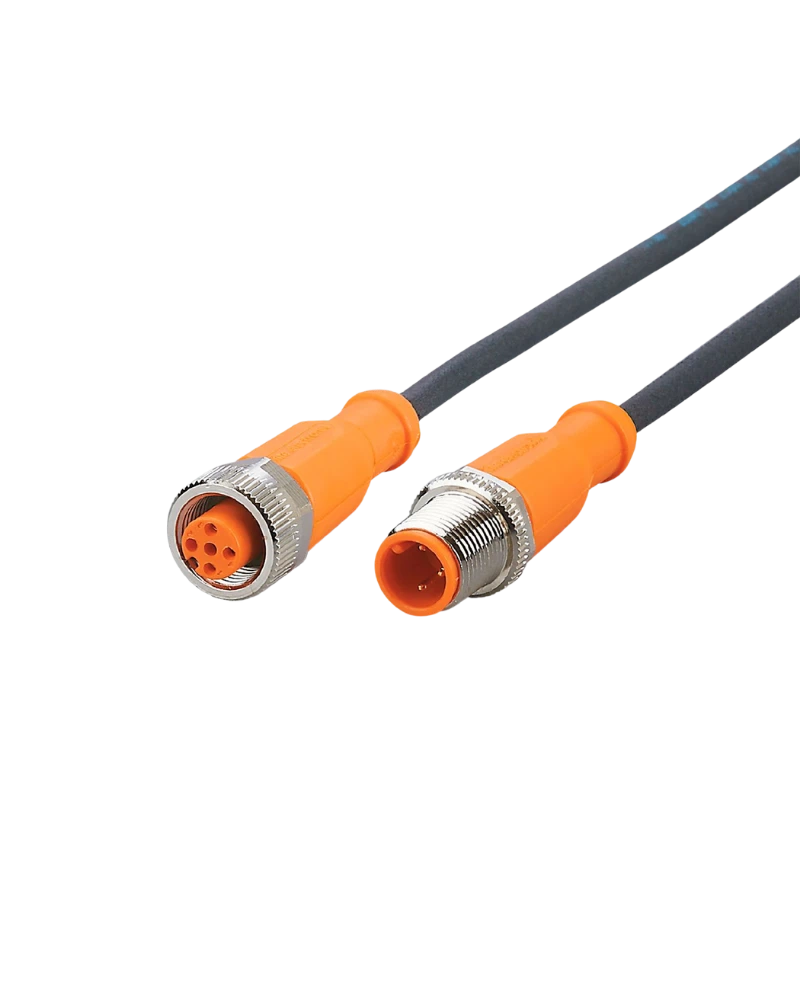

M12 Plug and Socket
EVC493 provides a complete M12 plug-to-socket connection. Both connectors use straight designs for convenient installation. Gold-plated contacts provide reliable electrical connectivity. The locking mechanism supports secure operation.
10 m Cable Length
The 10 m cable provides extended reach for industrial installations. Its PUR construction allows flexible routing. The cable is designed to withstand mechanical stress. It is suitable for larger machinery and production systems.
Electrical Performance
The cable uses three 0.34 mm² conductors. It supports 250 V AC / 300 V DC and 4 A current rating. This provides dependable connectivity for automation applications. The connector design supports stable operation.
High Protection
EVC493 offers IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The cable is halogen-free and silicone-free. Its drag-chain suitability supports moving machinery.
10 m PUR cable
3 × 0.34 mm² conductors
M12 plug and socket
Straight / straight design
Gold-plated contacts
250 V AC / 300 V DC
4 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Industrial automation
Machine tools
Factory automation
Sensor connections
Actuator systems
Production machinery
Robotics
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC493 |
| Manufacturer | IFM |
| Order Code | VDOGH030MSS0010H03STGH030MSS |
| Product Type | Connection Cable |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Conductors | 3 × 0.34 mm² |
| Connector A | M12 plug |
| Connector B | M12 socket |
| Connector Design | Straight / Straight |
| Coding | A |
| Contacts | Gold-plated |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
