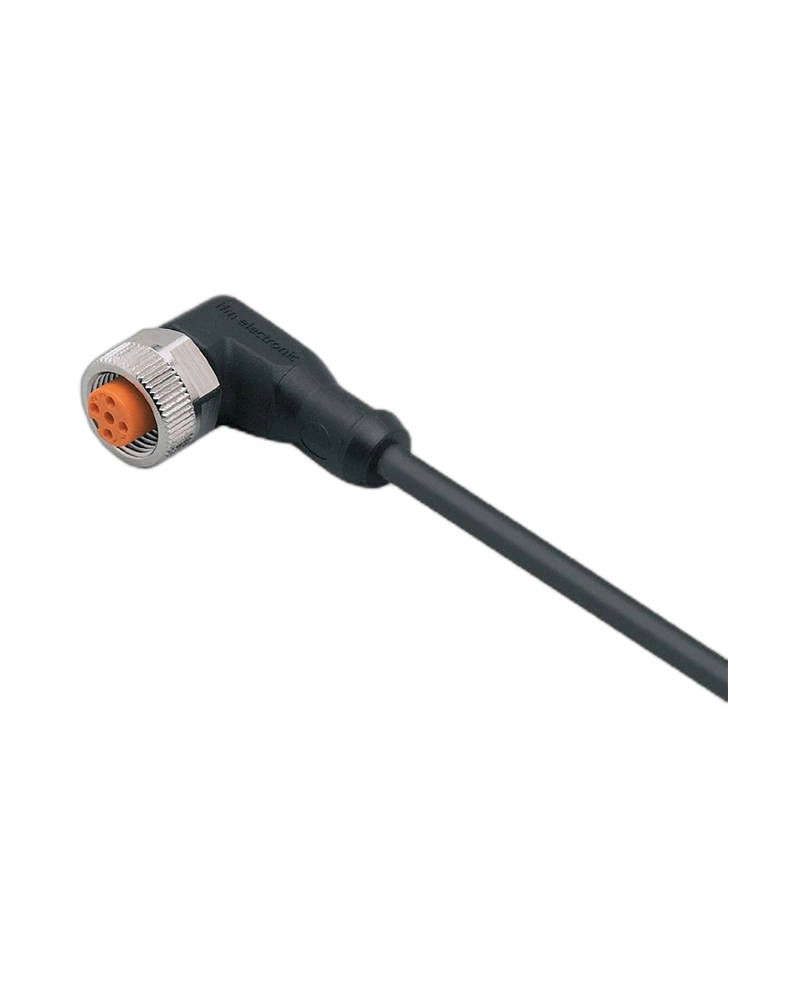

IFM EVC492 is a 5 m M12 connecting cable with an integrated CAN bus terminating resistor. It is designed for reliable CAN bus connections in industrial automation systems. The angled M12 socket provides convenient installation and cable routing. Gold-plated contacts and high IP protection support dependable operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
CAN Bus Connectivity
EVC492 is specifically designed for CAN bus applications. Its M12 connector includes an integrated 120 Ω terminating resistor. This helps simplify CAN bus installation. It provides dependable communication between compatible automation devices.
5-Core PUR Cable
The 5 m PUR cable provides useful reach for machine and control installations. The cable uses five 0.34 mm² conductors. PUR construction offers flexibility and mechanical durability. The cable is suitable for industrial environments.
Angled M12 Socket
The angled socket supports practical cable routing around machine components. It helps reduce sharp cable bends near the connector. Gold-plated contacts provide reliable electrical connections. The brass locking nut ensures secure installation.
Industrial Protection
EVC492 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The cable is halogen-free and silicone-free. Drag-chain suitability supports moving applications.
5 m PUR cable
5 × 0.34 mm² conductors
Angled M12 socket
Integrated 120 Ω CAN terminating resistor
Gold-plated contacts
CAN bus connection
32 V DC operating voltage
4 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Viton sealing
CAN bus networks
Industrial automation
Mobile machines
Machine control systems
Factory automation
Robotic systems
Industrial communication
Automation controllers
| Specification | Details |
|---|---|
| Product Code | EVC492 |
| Manufacturer | IFM |
| Order Code | ADOAH050MSA0005H05 |
| Product Type | Connecting Cable with Socket |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Conductors | 5 × 0.34 mm² |
| Connector | M12 socket |
| Connector Design | Angled |
| Coding | A |
| Contacts | Gold-plated |
| Electrical Design | CAN bus |
| Operating Voltage | 32 V DC |
| Wires 4 + 5 | 5 V DC |
| Current Rating | 4 A |
| Wires 4 + 5 | 0.05 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Terminating Resistor | 120 Ω |
| Housing | TPU, black |
| Locking Nut | Brass, nickel-plated |
| Sealing | Viton / FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
