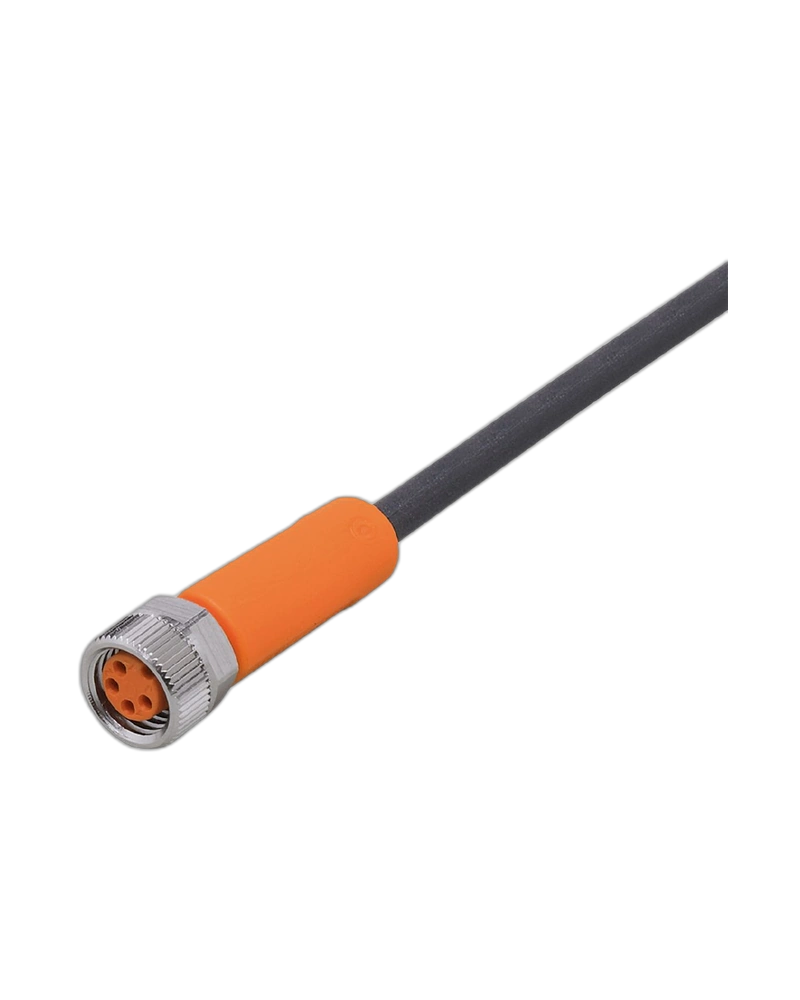

IFM EVC491 is a 5 m connecting cable with a straight M12 socket for industrial automation applications. It features four 0.34 mm² conductors and gold-plated contacts. The PUR cable provides flexibility and excellent mechanical durability. High IP protection supports reliable use in harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M12 Connection
EVC491 provides secure connectivity for M12-compatible industrial sensors. The straight socket simplifies installation and connection. Gold-plated contacts support dependable signal transmission. The locking mechanism helps maintain a stable connection.
Extended 5 m Cable
The 5 m cable provides sufficient reach for larger machine installations. PUR construction supports flexible cable routing. It offers good resistance to mechanical wear. This makes it suitable for factory automation systems.
Strong Electrical Performance
The cable supports 250 V AC and 300 V DC with a 4 A current rating. Four 0.34 mm² conductors provide reliable electrical connectivity. The connector is designed for industrial applications. Stable contact performance supports continuous operation.
Industrial Durability
EVC491 provides IP65, IP67, IP68 and IP69K protection. It is suitable for oil and coolant exposed environments. The cable is free from silicone and halogens. Drag-chain suitability supports dynamic applications.
5 m PUR cable
4 × 0.34 mm² conductors
Straight M12 socket
Gold-plated contacts
250 V AC / 300 V DC
4 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Viton sealing
Drag-chain suitable
Industrial automation
Machine tools
Factory automation
Sensor connections
Production machinery
Robotic equipment
Control systems
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | EVC491 |
| Manufacturer | IFM |
| Order Code | ADOGH040MSS0005H04 |
| Product Type | Connecting Cable with Socket |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Conductors | 4 × 0.34 mm² |
| Connector | M12 socket |
| Connector Design | Straight |
| Coding | A |
| Contacts | Gold-plated |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing | Viton |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
