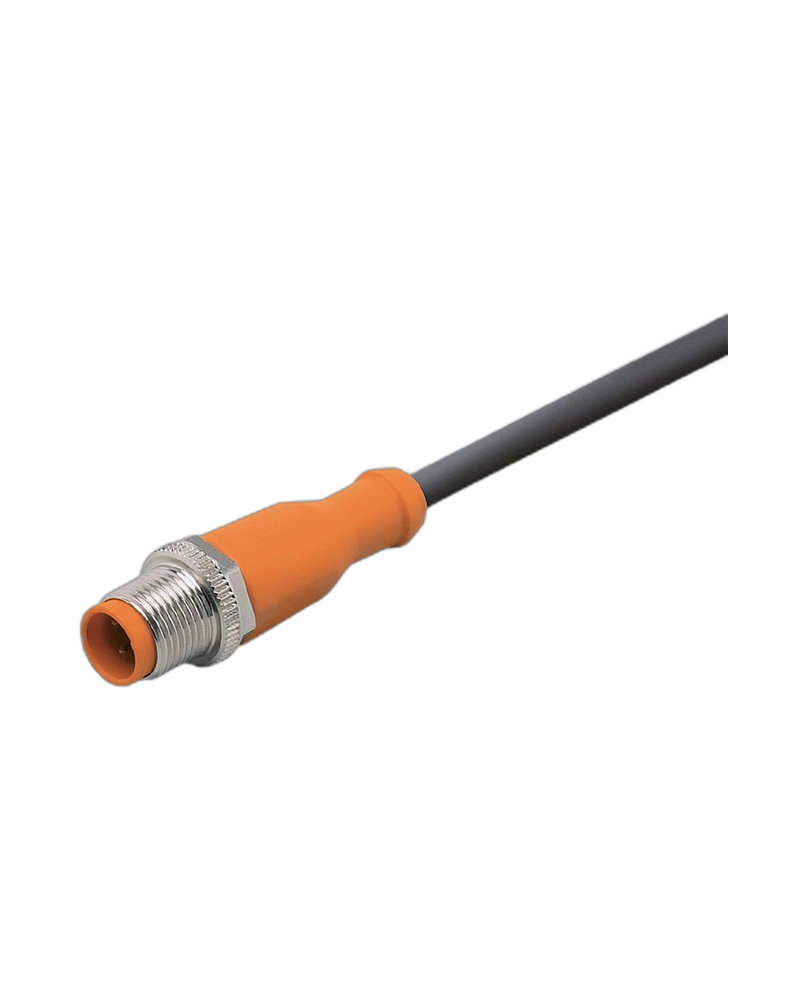

IFM EVC480 is a 5 m connecting cable with a straight M8 plug for industrial automation systems. It uses a 3-core PUR cable with gold-plated contacts for reliable electrical connectivity. The cable provides good flexibility and mechanical durability. Its high protection rating makes it suitable for industrial sensor applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M8 Connection
EVC480 provides dependable connectivity between sensors and automation equipment. The straight M8 plug allows convenient installation and secure locking. Gold-plated contacts help maintain reliable signal transmission. The connector is designed for industrial applications.
Flexible Cable Construction
The 5 m PUR cable provides sufficient reach for machine installations. Its flexible construction makes cable routing easier. The cable is resistant to mechanical stress and industrial contaminants. It is suitable for fixed and moving installations.
Electrical Performance
The cable supports 50 V AC and 60 V DC with a 3 A current rating. The 3-core construction is suitable for common sensor and automation connections. Gold-plated contacts support stable electrical performance. The secure connector helps maintain continuous operation.
Harsh Environment Protection
EVC480 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The cable is halogen-free and silicone-free. It is suitable for demanding factory environments.
5 m PUR cable
3 × 0.25 mm² conductors
Straight M8 plug
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
High bending-cycle capability
Industrial sensors
Factory automation
Machine tools
Sensor wiring
Production machinery
Robotics
Automation control systems
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | EVC480 |
| Manufacturer | IFM |
| Order Code | ASTGF030MSS0005H03 |
| Product Type | Connecting Cable with Plug |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Conductors | 3 × 0.25 mm² |
| Connector | M8 plug |
| Connector Design | Straight |
| Coding | A |
| Contacts | Gold-plated |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
