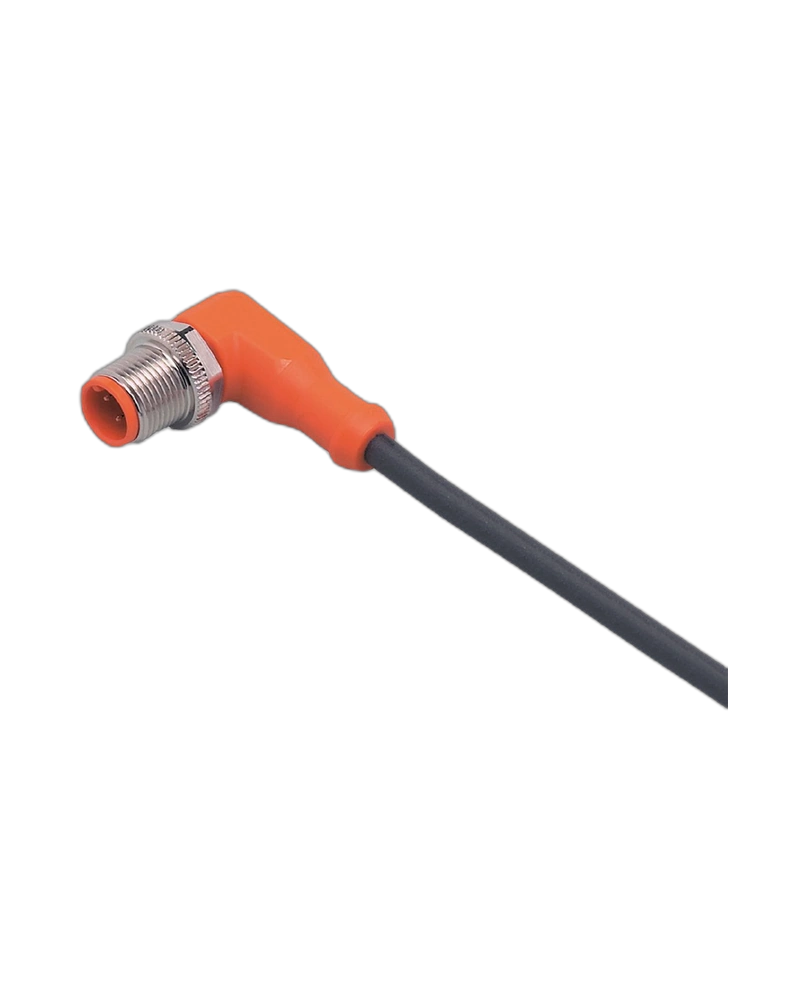

IFM EVC479 is a 5 m connecting cable with an angled M12 plug for industrial automation applications. It features a 5-core PUR cable and gold-plated contacts for dependable electrical connectivity. The cable offers excellent flexibility and resistance to industrial conditions. Its high protection rating makes it suitable for demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M12 Connectivity
EVC479 provides a secure connection between sensors and automation equipment. The angled M12 plug is suitable for installations where cable routing space is limited. Gold-plated contacts support reliable signal transmission. The locking mechanism helps prevent accidental disconnection.
Durable PUR Cable
The 5 m PUR cable provides useful installation reach for industrial machines. Its flexible construction supports easy routing around machine components. The cable is resistant to oils and coolants. It is also halogen-free and silicone-free.
Angled Connector Design
The angled M12 connector supports convenient cable routing in compact installations. It helps reduce unnecessary bending near the connector. This supports organized machine wiring. The robust connector housing is designed for industrial use.
Industrial Protection
EVC479 provides IP65, IP67, IP68 and IP69K protection. It is suitable for harsh environments with dust, moisture and industrial contaminants. Vibration and shock resistance support dependable operation. The cable is also suitable for drag-chain applications.
5 m PUR cable
5 × 0.34 mm² conductors
Angled M12 plug
Gold-plated contacts
60 V AC / 60 V DC
4 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Sensor connections
Factory automation
Machine tools
Production machinery
Robotic equipment
Control systems
Industrial electrical installations
| Specification | Details |
|---|---|
| Product Code | EVC479 |
| Manufacturer | IFM |
| Order Code | ASTAH050MSS0005H05 |
| Product Type | Connecting Cable with Plug |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.6 mm |
| Conductors | 5 × 0.34 mm² |
| Connector | M12 plug |
| Connector Design | Angled |
| Coding | A |
| Contacts | Gold-plated |
| Electrical Design | AC/DC |
| Operating Voltage | 60 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
