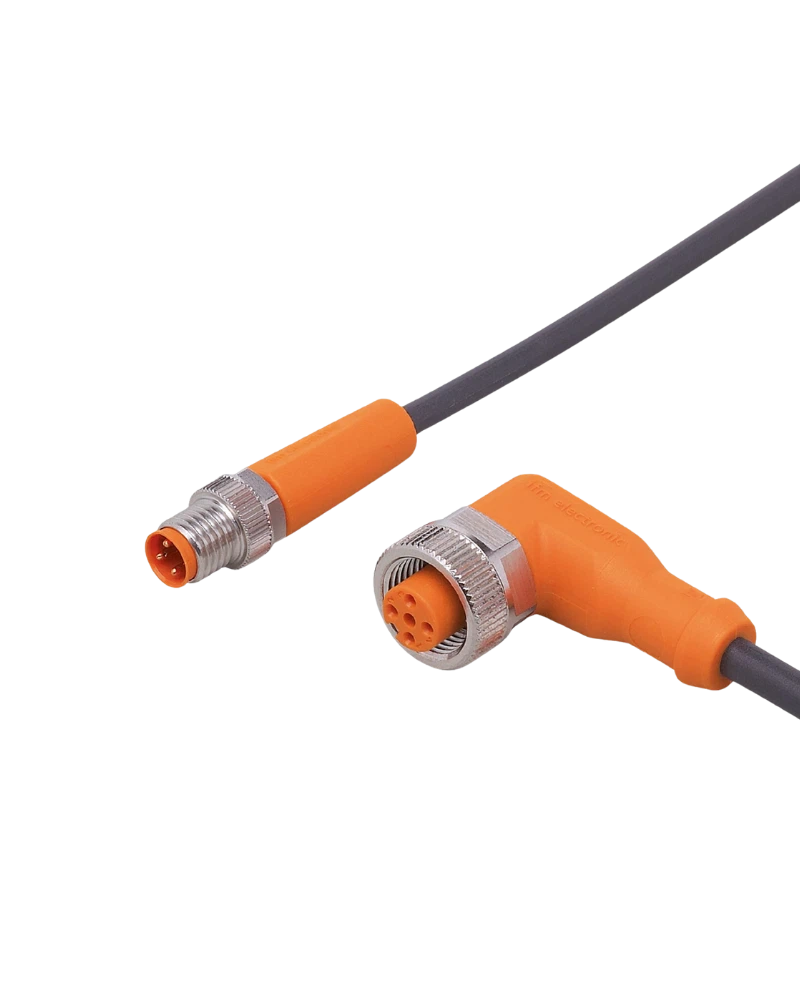

IFM EVC477 is a compact 0.4 m M8 connection cable designed for short-distance industrial automation connections. It features a straight M8 plug and angled M8 socket for convenient installation. The PUR cable provides flexibility and reliable mechanical performance. It is suitable for compact machine and sensor applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Compact M8 Connection
EVC477 is designed for connecting automation components positioned close together. Its compact 0.4 m length helps minimize excess cable. The M8 plug and socket provide secure industrial connectivity. Gold-plated contacts support reliable signal transmission.
Space-Saving Design
The short cable length is useful where installation space is limited. The angled socket makes cable routing easier around machine components. It helps reduce cable loops and unnecessary bending. This supports neat machine wiring.
Durable PUR Construction
The PUR cable provides flexibility and resistance to mechanical wear. Its 3 × 0.25 mm² construction supports reliable signal and control connections. The cable is suitable for industrial environments. Drag-chain suitability provides additional flexibility.
High Protection
EVC477 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The cable is silicone-free and halogen-free. This makes it suitable for demanding automation applications.
0.4 m PUR cable
M8 plug and M8 socket
Straight / angled design
3 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Compact automation machines
Industrial sensors
Machine tools
Factory automation
Actuator connections
Robotic equipment
Production machinery
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC477 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOAF030MSS0004H03STGF030MSS |
| Cable Length | 0.4 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Conductors | 3 × 0.25 mm² |
| Connector A | M8 plug |
| Connector B | M8 socket |
| Plug Design | Straight |
| Socket Design | Angled |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU, orange |
| Nut | Brass, nickel-plated |
| Sealing | Viton / FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
