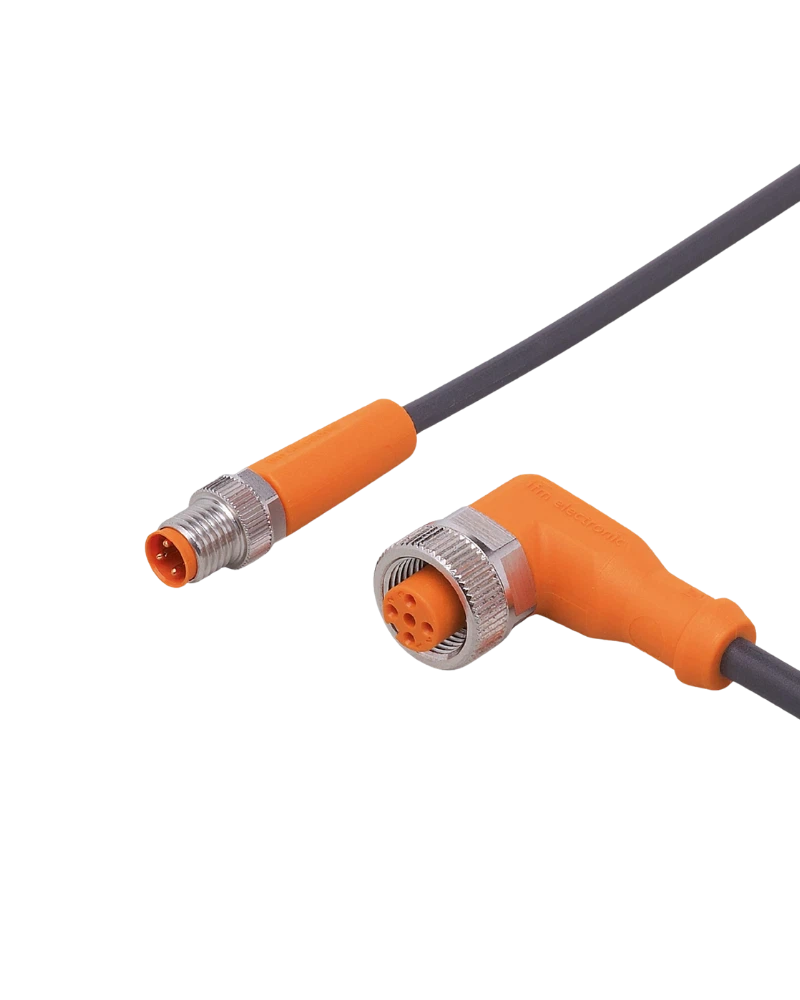

IFM EVC476 is a 3.5 m M8 connection cable designed for dependable industrial automation connectivity. It combines a straight M8 plug with an angled M8 socket for convenient cable routing. The PUR cable provides flexibility and mechanical durability. High IP protection supports use in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Dependable M8 Connectivity
EVC476 provides reliable connection between industrial sensors, actuators and automation components. The M8 connector configuration supports secure machine-level wiring. Gold-plated contacts provide dependable electrical performance. The locking mechanism helps prevent accidental disconnection.
3.5 m Cable Length
The 3.5 m cable provides additional reach for industrial machine installations. PUR construction allows flexible routing while maintaining mechanical strength. It is suitable for both fixed and moving applications. The black cable sheath provides a practical industrial finish.
Angled Socket Configuration
The angled M8 socket supports convenient cable routing around machine structures. It can help reduce excessive bending at the connector. This is useful in compact automation installations. The design supports neat and reliable cable management.
Industrial Protection
EVC476 offers IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants and suitable for harsh industrial environments. The cable is free from silicone and halogens. Drag-chain suitability supports dynamic machine applications.
3.5 m PUR cable
M8 plug and M8 socket
Straight / angled design
3 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Industrial automation
Factory automation
Machine tools
Sensor connections
Actuator wiring
Robotic systems
Production equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC476 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOAF030MSS0035H03STGF030MSS |
| Cable Length | 3.5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductors | 3 × 0.25 mm² |
| Connector A | M8 plug |
| Connector B | M8 socket |
| Plug Design | Straight |
| Socket Design | Angled |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
