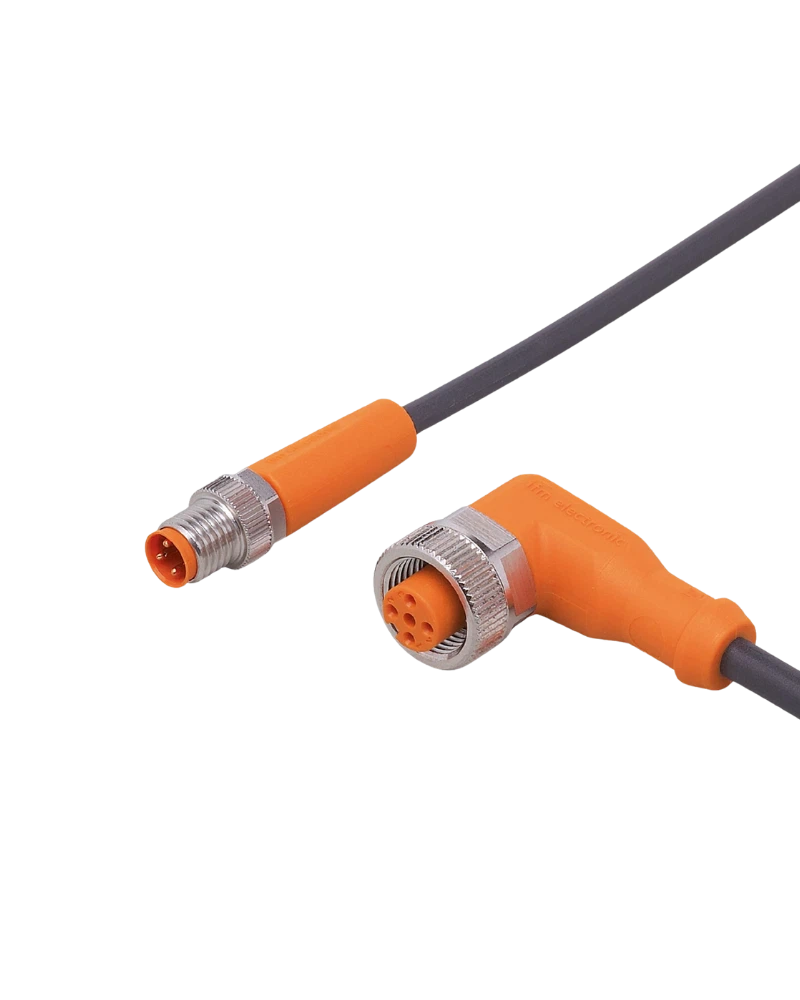

IFM EVC475 is a 2.5 m M8 connection cable designed for reliable industrial automation connections. It features a straight M8 plug and angled M8 socket for practical cable routing. The PUR cable provides flexibility, durability and resistance to industrial conditions. It is suitable for sensors, actuators and automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Automation Connection
EVC475 provides dependable connectivity between compatible M8 automation components. The straight plug and angled socket support flexible machine installation. Gold-plated contacts help maintain reliable electrical signal transmission. The locking system provides secure connection during operation.
2.5 m Cable Reach
The 2.5 m cable provides a practical length for machine-level connections. It offers sufficient reach without excessive cable slack. PUR construction provides flexibility and mechanical strength. It is suitable for fixed and moving installations.
Angled Socket for Easy Routing
The angled socket supports cable routing in confined machine spaces. It helps reduce excessive bending around connection points. This design is useful where sensors are mounted close to machine structures. It supports cleaner and more organized wiring.
Harsh Environment Protection
EVC475 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. Silicone-free and halogen-free construction supports industrial use. Drag-chain suitability allows use in moving machinery.
2.5 m PUR cable
M8 plug and M8 socket
Straight / angled design
3 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Industrial automation
Machine tools
Sensor wiring
Actuator connections
Factory automation
Robotics
Production machinery
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC475 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOAF030MSS0025H03STGF030MSS |
| Cable Length | 2.5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductors | 3 × 0.25 mm² |
| Connector A | M8 plug |
| Connector B | M8 socket |
| Plug Design | Straight |
| Socket Design | Angled |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
