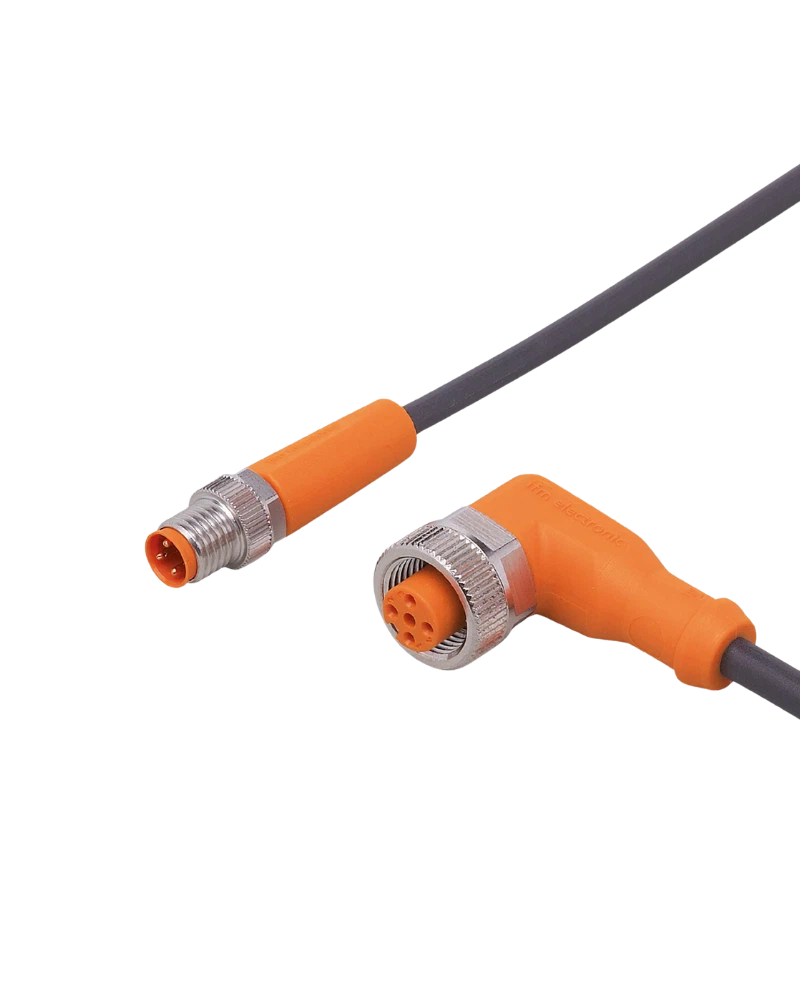

IFM EVC474 is a 1.5 m M8 connection cable designed for flexible industrial automation installations. It features a straight M8 plug and angled M8 socket for convenient cable routing. The PUR cable provides reliable mechanical performance and high environmental protection. It is suitable for sensors, actuators and compact machine systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Flexible M8 Connection
EVC474 connects industrial automation components using M8 interfaces. Its straight plug and angled socket configuration supports convenient machine installation. Gold-plated contacts provide dependable signal transmission. The locking mechanism helps maintain a secure connection.
Compact 1.5 m Length
The 1.5 m cable length is suitable for short-distance machine connections. It helps avoid unnecessary cable loops and supports organized installation. PUR construction provides flexibility and resistance to wear. The cable can be routed through compact machine spaces.
Angled Socket Design
The angled socket helps simplify cable routing where installation space is restricted. It can reduce sharp bends near the connector. This improves cable management around sensors and machine components. The connector remains securely locked during operation.
Industrial Protection
The cable offers IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants and is suitable for harsh industrial conditions. Silicone-free and halogen-free construction adds to its industrial suitability.
1.5 m PUR cable
M8 plug and M8 socket
Straight / angled design
3 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Compact automation equipment
Industrial sensors
Machine tools
Factory automation
Actuator connections
Robotic machinery
Production systems
Industrial control equipment
| Specification | Details |
|---|---|
| Product Code | EVC474 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOAF030MSS0015H03STGF030MSS |
| Cable Length | 1.5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductors | 3 × 0.25 mm² |
| Connector A | M8 plug |
| Connector B | M8 socket |
| Plug Design | Straight |
| Socket Design | Angled |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
