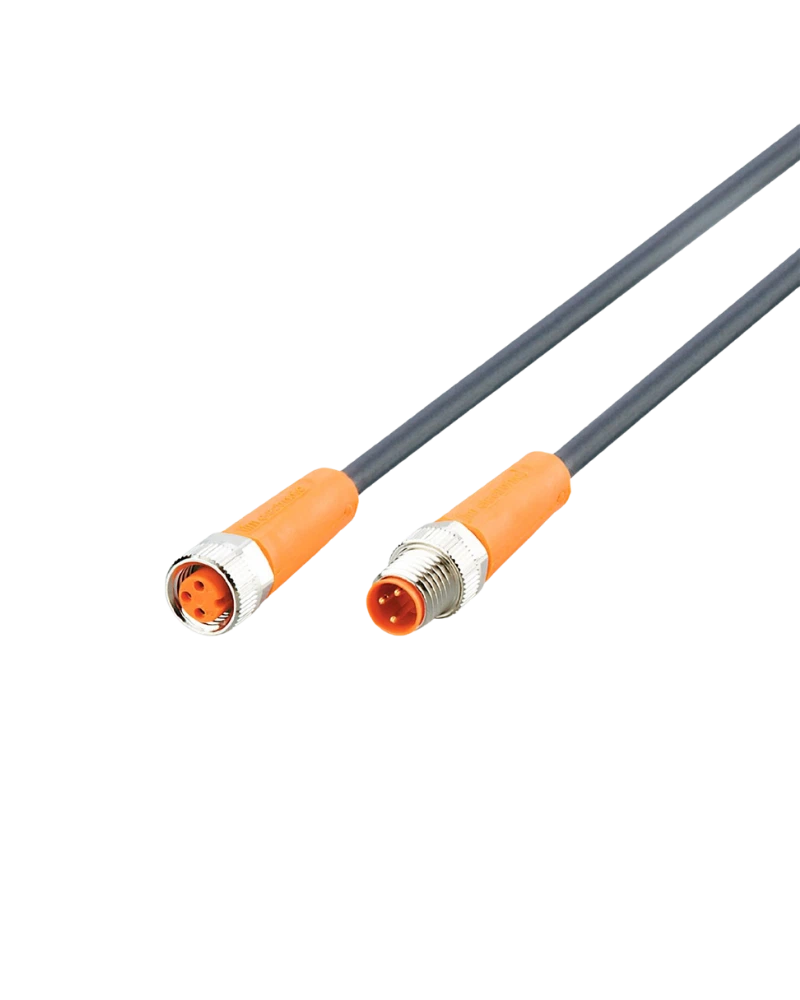

IFM EVC472 is a 3.5 m M8 connection cable designed for industrial automation applications. It features straight M8 plug and socket connectors with gold-plated contacts. The PUR cable provides flexibility and mechanical durability. High IP protection makes it suitable for sensors, actuators and machine automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M8 Connectivity
EVC472 provides a dependable connection between compatible industrial automation components. Its straight M8 plug and socket configuration supports easy installation. Gold-plated contacts help provide reliable signal transmission. The locking system maintains a secure connection.
3.5 m Cable Length
The 3.5 m cable offers useful reach for machine installations. PUR construction provides flexibility and resistance to mechanical wear. The cable can be routed around machinery without compromising connection reliability. It is suitable for production and automation equipment.
Durable Industrial Construction
The cable uses robust materials designed for demanding industrial environments. The nickel-plated brass locking components provide secure connections. Its design supports vibration and shock resistance. Drag-chain suitability allows use in moving applications.
Environmental Protection
EVC472 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The cable is halogen-free and silicone-free. This makes it suitable for industrial machinery and factory environments.
3.5 m PUR cable
M8 plug and M8 socket
Straight / straight configuration
3 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Industrial automation
Machine tools
Sensor connections
Actuator wiring
Factory automation
Robotics
Production machinery
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC472 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS0035H03STGF030MSS |
| Cable Length | 3.5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductors | 3 × 0.25 mm² |
| Connector A | M8 plug |
| Connector B | M8 socket |
| Connector Design | Straight / Straight |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
