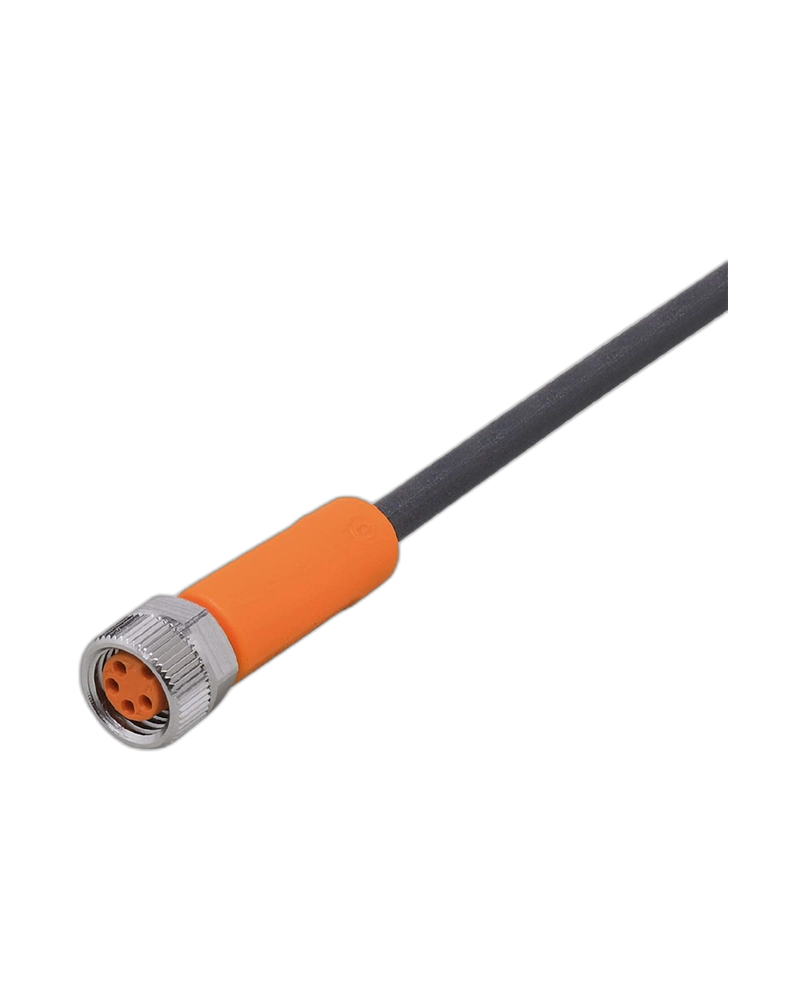

IFM EVC469 is a 5 m connecting cable with a straight M8 plug for industrial automation applications. It features a 4-core PUR cable with gold-plated contacts for dependable electrical connectivity. The cable offers excellent flexibility and mechanical durability. Its high protection rating makes it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M8 Connectivity
EVC469 provides a secure connection between industrial sensors and automation equipment. The straight M8 plug supports simple installation and reliable locking. Gold-plated contacts help maintain stable signal transmission. It is suitable for industrial control and sensor applications.
Durable PUR Cable
The 5 m PUR cable provides sufficient reach for machine installations. PUR construction offers good flexibility and resistance to mechanical wear. The black cable sheath is suitable for industrial environments. The 4-core design supports common sensor and control connections.
Industrial Protection
The cable is designed for harsh industrial conditions and offers IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The construction is also free from silicone and halogens. This supports dependable performance in production environments.
Secure Mechanical Design
The brass, nickel-plated locking nut provides a secure connection. The cable is suitable for drag-chain applications and can withstand repeated bending. Vibration and shock resistance help maintain reliable connectivity. It is suitable for moving machinery and automation systems.
5 m PUR cable
Straight M8 plug
4 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free construction
Silicone-free construction
Drag-chain suitable
High bending-cycle capability
Industrial automation
Sensor connections
Machine tools
Factory automation
Production machinery
Robotic equipment
Control panels and machinery
Industrial electrical systems
| Specification | Details |
|---|---|
| Product Code | EVC469 |
| Product Type | Connecting Cable with Plug |
| Manufacturer | IFM |
| Order Code | ASTGF040MSS0005H04 |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Conductors | 4 × 0.25 mm² |
| Connector | 1 × M8 plug |
| Connector Design | Straight |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
