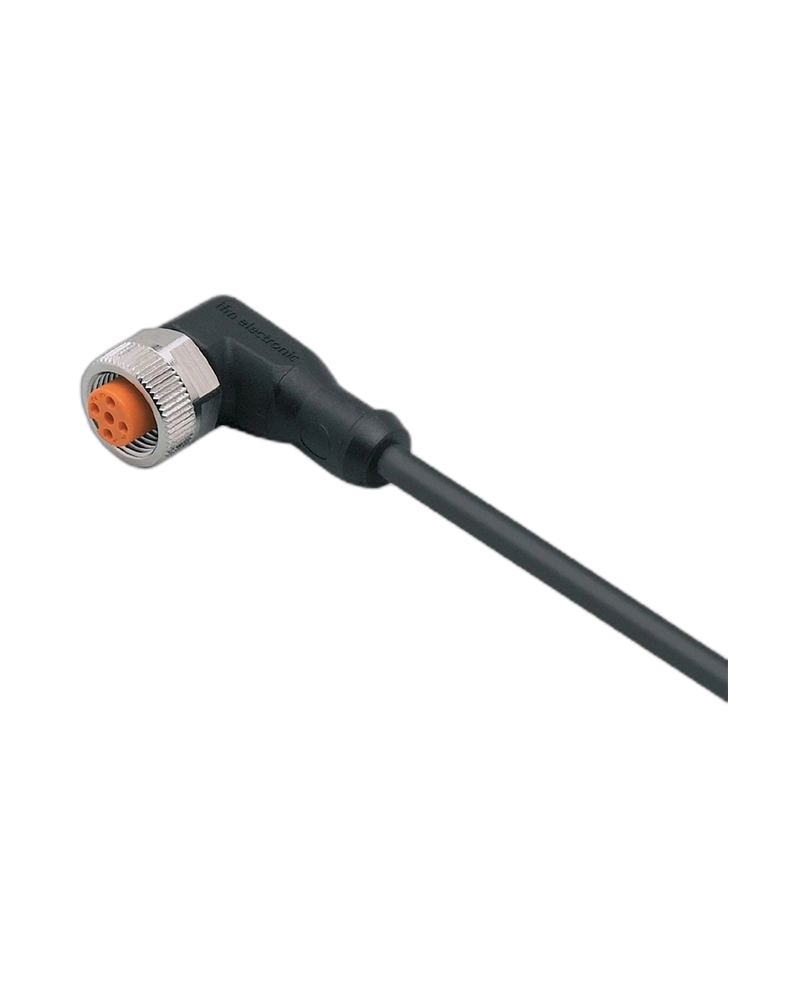

IFM EVC468 is a 4.8 m connecting cable with an angled M12 socket designed for industrial sensor applications. It features a 4-conductor PUR cable and PNP electrical design with LED status indication. High IP protection, gold-plated contacts and durable materials provide reliable operation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 Sensor Connection
EVC468 is designed for connecting sensors with M12 interfaces. Its angled M12 socket supports convenient cable routing around machinery. Gold-plated contacts provide reliable electrical connectivity. It is suitable for industrial sensors and automation equipment.
PNP Electrical Design
The cable uses a DC PNP electrical design with a 10–36 V DC operating range. LED indicators provide useful visual status information during operation. The four-conductor construction supports sensor connectivity. It is suitable for industrial automation applications.
Flexible 4.8 m Cable
The 4.8 m PUR cable provides useful reach for machine installations. PUR offers flexibility and resistance to industrial wear. The cable can be routed around equipment and moving machinery. Its drag-chain suitability supports dynamic applications.
High Environmental Protection
EVC468 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants and is free from silicone and halogens. This makes it suitable for machine tools and demanding factory environments.
4.8 m PUR cable
M12 angled socket
4 × 0.34 mm² conductors
DC PNP electrical design
10–36 V DC operating voltage
4 A current rating
2 yellow status LEDs
Green power LED
Gold-plated contacts
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Industrial sensors
Factory automation
Machine tools
Industrial automation systems
Sensor monitoring
Production machinery
Robotic equipment
Control and automation systems
| Specification | Details |
|---|---|
| Product Code | EVC468 |
| Product Type | Connecting Cable with Socket |
| Manufacturer | IFM |
| Order Code | ADOAH043MSS04,8H04 |
| Cable Length | 4.8 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 4.9 mm |
| Conductor | 4 × 0.34 mm² |
| Connector Type | M12 socket |
| Connector Design | Angled |
| Number of Contacts | 4 |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | Viton |
| Status Indication | 2 × yellow LEDs |
| Power Indication | Green LED |
| Ambient Temperature | -25 to 90 °C |
| cULus Temperature | Up to 75 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| MTTF | 20,027 years |
| Pack Quantity | 1 pc |
