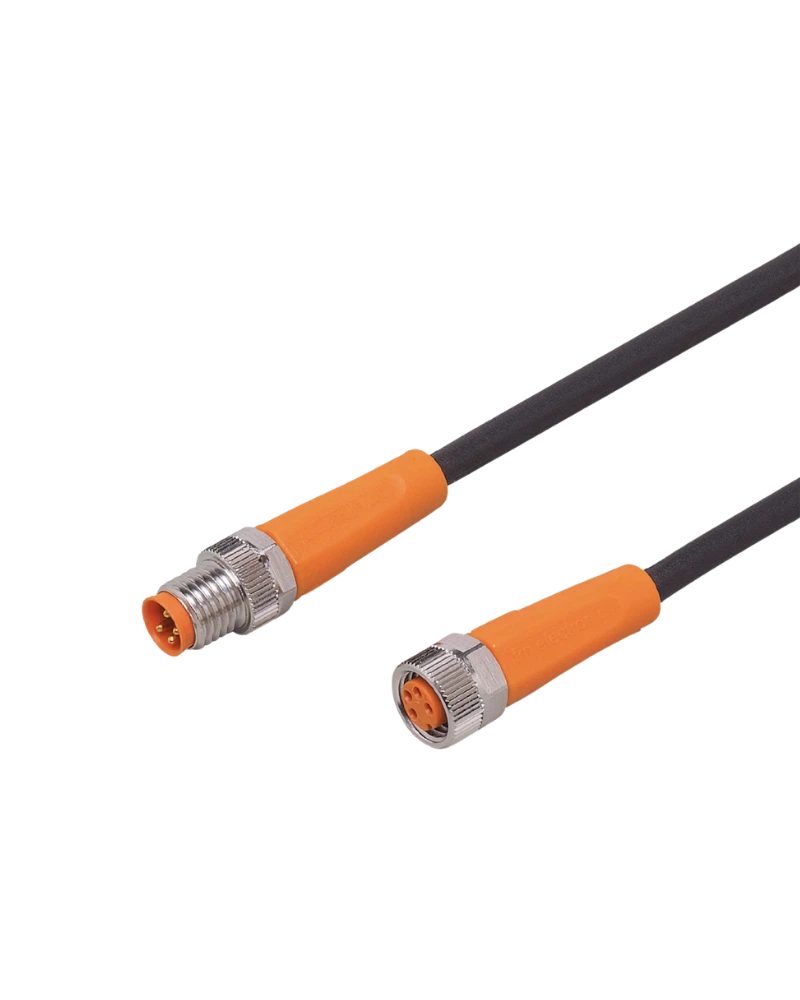

IFM EVC467 is a 10 m M8 connection cable designed for reliable industrial automation connectivity. It features straight M8 plug and socket connectors with gold-plated contacts. The PUR cable offers flexibility, durability and high environmental protection for sensors, actuators and machine automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M8 Connectivity
EVC467 provides dependable connectivity between compatible industrial automation components. Straight M8 connectors support easy installation and secure connections. Gold-plated contacts help maintain reliable signal transmission. It is suitable for industrial sensor and actuator applications.
10 m Cable Length
The 10 m cable provides extended reach for large machines and production installations. PUR construction offers flexibility and resistance to mechanical wear. The cable can be routed across machine systems. Its black sheath supports practical industrial installation.
Secure Connection
The connector locking system helps maintain connection stability during vibration and machine movement. TPU connector bodies and FKM sealing provide durable protection. The design is suitable for demanding automation environments. It supports long-term machine connectivity.
High Protection
EVC467 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. Silicone-free and halogen-free construction supports industrial applications. Drag-chain suitability allows use in moving machinery.
10 m PUR cable
M8 plug and M8 socket
Straight / straight design
3 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
High bending-cycle capability
Industrial automation
Factory automation
Machine tools
Sensor connections
Actuator wiring
Robotics
Production equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC467 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS0010H03STGF030MSS |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 3 × 0.25 mm² |
| Connector A | M8 plug |
| Connector B | M8 socket |
| Connector Design | Straight / Straight |
| Number of Contacts | 3 |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | Viton |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
