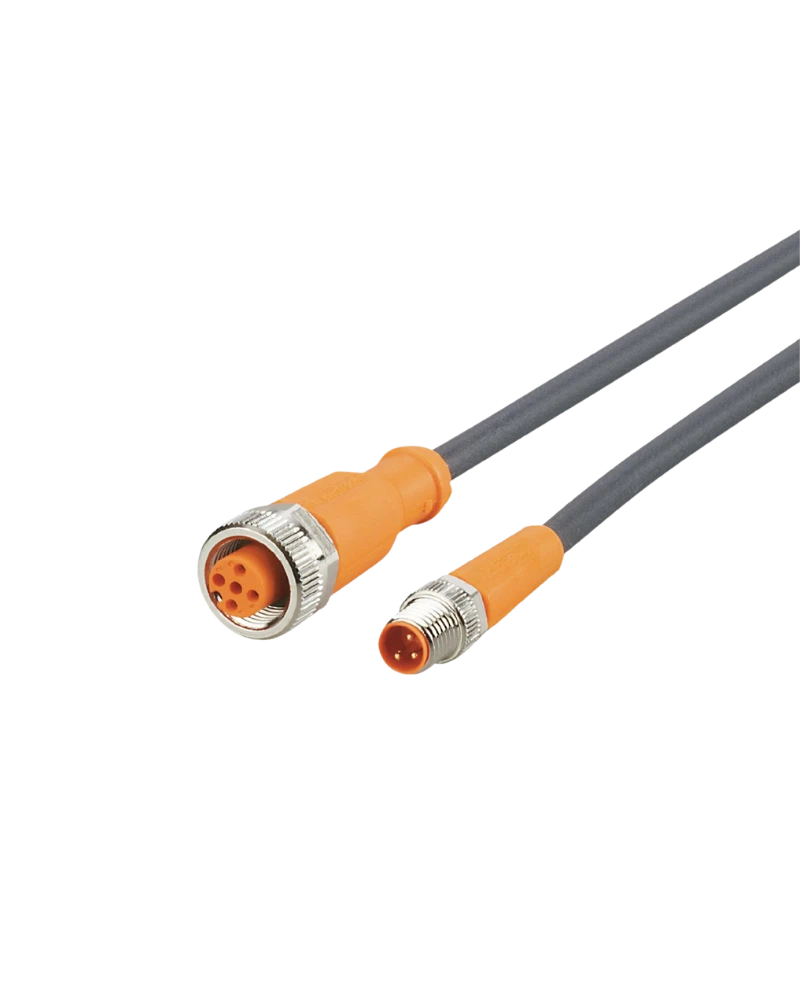

IFM EVC466 is a 10 m connection cable designed to connect industrial automation components using M8 and M12 interfaces. It features straight M8 plug and straight M12 socket connectors. The PUR cable provides reliable signal transmission, mechanical durability and high environmental protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M8 to M12 Connection
EVC466 provides reliable connectivity between compatible M8 and M12 automation components. The straight connector arrangement supports convenient installation. Gold-plated contacts help ensure dependable electrical performance. It is suitable for sensors and industrial automation equipment.
Extended 10 m Cable
The 10 m cable length provides extended reach for larger machine installations. PUR construction provides flexibility and mechanical strength. It can be routed across production equipment while maintaining reliable performance. This makes it suitable for larger automation systems.
Durable Industrial Construction
The connector housings use robust TPU material and the sealing uses Viton. Brass, nickel-plated locking components provide secure connection. The cable is designed to resist vibration and shock. It supports reliable operation in demanding industrial environments.
Protection Against Harsh Conditions
EVC466 offers IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants and is free from silicone and halogens. Drag-chain suitability provides additional flexibility for moving applications.
10 m PUR cable
M8 plug to M12 socket
Straight / straight connectors
3 × 0.34 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Vibration and shock resistant
Industrial automation
Factory automation
Machine tools
Sensor connections
Actuator connections
Production machinery
Robotics
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC466 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGH030MSS0010H03STGF030MSS |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 4.9 mm |
| Conductor | 3 × 0.34 mm² |
| Connector A | M8 plug |
| Connector B | M12 socket |
| Connector Design | Straight / Straight |
| Number of Contacts | 3 |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | Viton |
| Ambient Temperature | -25 to 90 °C |
| cULus Temperature | Up to 75 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
