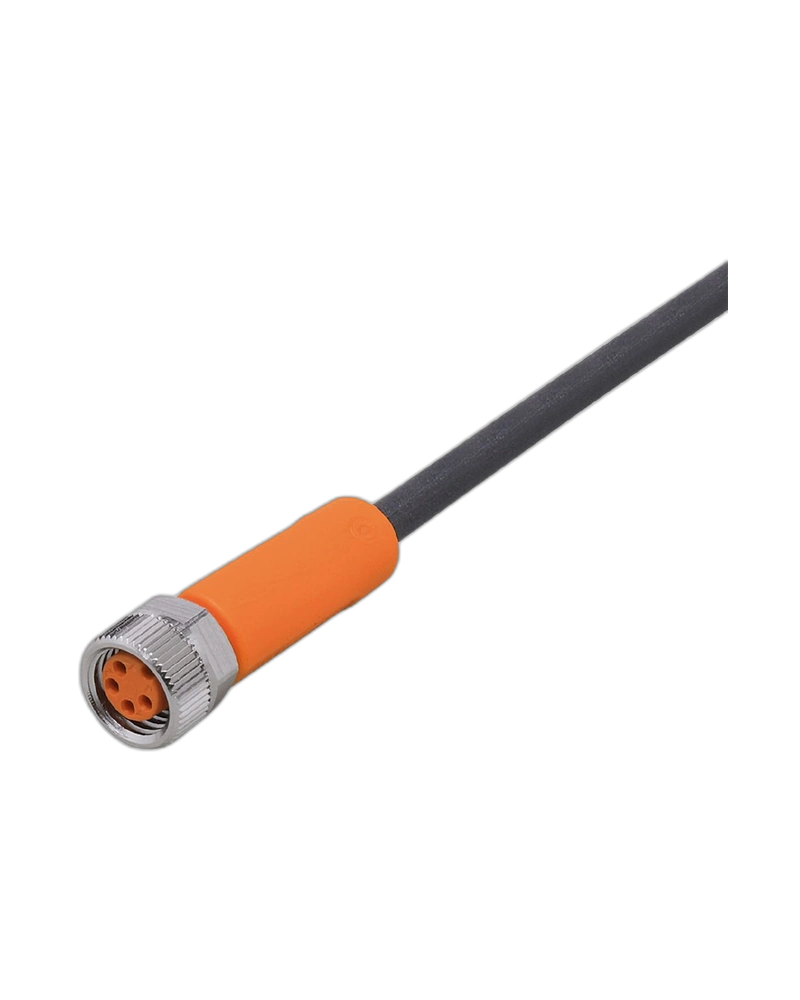

IFM EVC465 is a 4 m connection cable with a straight M8 socket designed for industrial sensor and actuator connections. It uses a PUR cable with four conductors and gold-plated contacts. High IP protection and durable construction make it suitable for demanding automation and machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Socket Connection
EVC465 provides a dependable connection point for compatible sensors with M8 connectors. Its straight socket design supports convenient installation. Gold-plated contacts help provide reliable electrical connectivity. It is suitable for industrial automation systems.
4 m PUR Cable
The 4 m cable length provides useful reach for machine installations. PUR construction provides flexibility and resistance to mechanical wear. The four-conductor design supports common industrial sensor connections. The cable can be routed around machine components.
Durable Industrial Design
The connector body uses robust TPU material and the sealing uses Viton. The locking nut helps secure the connection during operation. The cable is designed to resist vibration and shock. It is suitable for continuous industrial use.
High Protection Rating
EVC465 provides IP65, IP67, IP68 and IP69K protection. It is free from silicone and halogens. The cable is suitable for environments where dust, water, oils and coolants may be present.
4 m PUR cable
M8 straight socket
4 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
High bending-cycle capability
M8 sensor connections
Industrial automation
Factory automation
Machine tools
Sensor wiring
Actuator connections
Robotic equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC465 |
| Product Type | Connecting Cable with Socket |
| Manufacturer | IFM |
| Order Code | ADOGF040MSS0004H04 |
| Cable Length | 4 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 4 × 0.25 mm² |
| Connector Type | M8 socket |
| Connector Design | Straight |
| Number of Contacts | 4 |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing | Viton |
| Ambient Temperature | -25 to 90 °C |
| cULus Temperature | Up to 80 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
