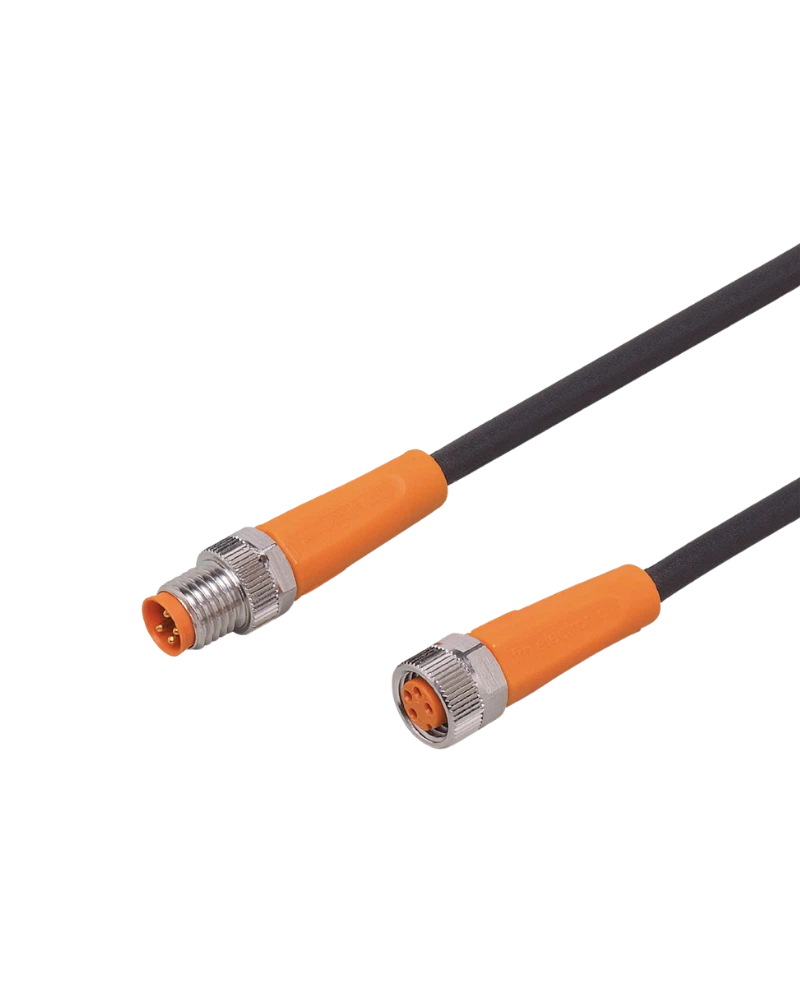

IFM EVC464 is a 15.5 m M8 connection cable designed for extended-distance industrial automation installations. It features straight M8 plug and socket connectors with gold-plated contacts. The durable PUR cable provides reliable signal connectivity and high environmental protection for industrial equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Cable Reach
EVC464 provides a long 15.5 m connection length for applications requiring extended cable routing. This makes it suitable for larger machines and production installations. The PUR construction provides flexibility and mechanical strength. It supports organized routing across industrial equipment.
Reliable M8 Connectivity
The cable features straight M8 plug and socket connectors. Gold-plated contacts help provide reliable electrical signal transmission. The locking mechanism helps maintain a secure connection. It is suitable for industrial sensor and actuator connections.
Durable PUR Construction
The black PUR cable is designed for industrial use and resistance to mechanical wear. Its 4 × 0.25 mm² conductor construction provides reliable connectivity. The cable is halogen-free and silicone-free. This supports use in demanding production environments.
High Environmental Protection
EVC464 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The cable is also suitable for drag-chain applications. Its robust construction supports operation in harsh industrial environments.
15.5 m PUR cable
M8 plug and M8 socket
Straight / straight design
4 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
High bending-cycle capability
Large industrial machinery
Factory automation
Machine tools
Production lines
Sensor connections
Actuator wiring
Robotic systems
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC464 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF040MSS15,5H04STGF040MSS |
| Cable Length | 15.5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 4 × 0.25 mm² |
| Connector A | M8 plug |
| Connector B | M8 socket |
| Connector Design | Straight / Straight |
| Number of Contacts | 4 |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
