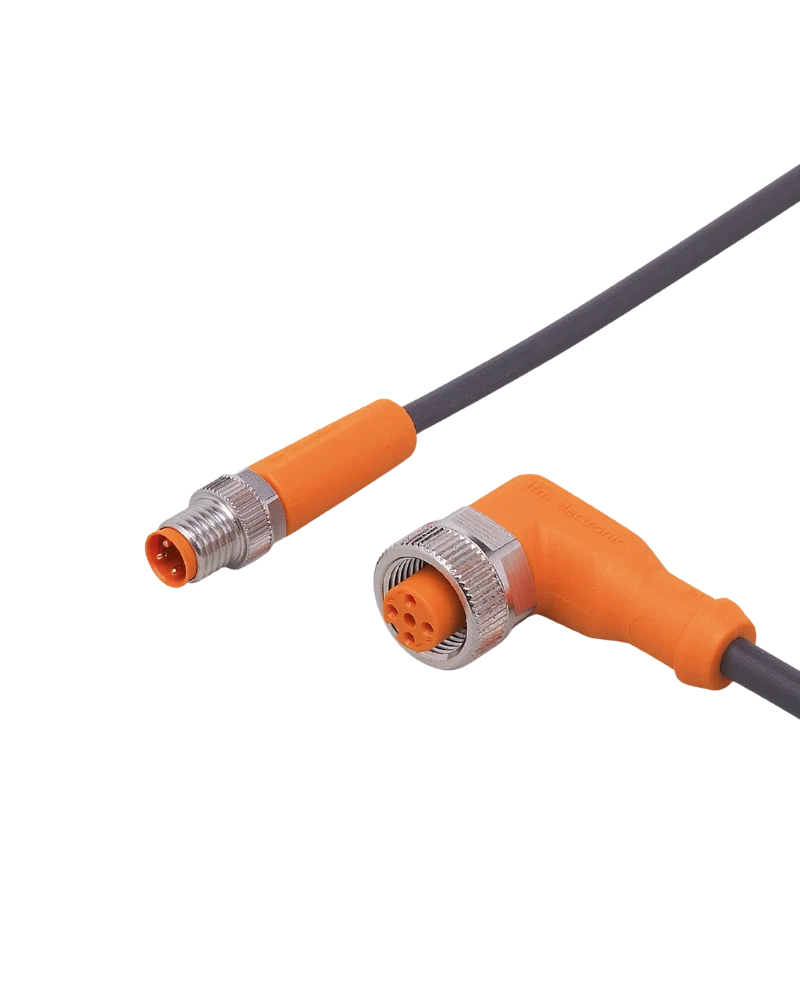

IFM EVC463 is a 3 m connection cable designed to connect industrial automation components using M8 and M12 interfaces. It features a straight M8 plug and angled M12 socket. The PUR cable provides durable, flexible connectivity for sensors, actuators and machine automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M8 to M12 Connectivity
EVC463 provides convenient connectivity between equipment using M8 and M12 interfaces. Its straight M8 plug and angled M12 socket support flexible machine integration. Gold-plated contacts help maintain reliable signal transmission. It is suitable for industrial sensor and actuator connections.
Durable 3 m Cable
The 3 m PUR cable provides extended reach for automation installations. The cable is flexible enough for machine routing while maintaining mechanical durability. Its 3 × 0.34 mm² construction supports dependable electrical connectivity. It is suitable for demanding production environments.
Practical Angled Socket
The angled M12 socket helps simplify cable routing in restricted installation areas. The straight M8 plug provides a straightforward connection to compatible equipment. This configuration can help reduce cable stress. The locking components help maintain a secure connection.
Industrial Protection
EVC463 provides IP65, IP67, IP68 and IP69K protection. The cable is resistant to oils and coolants and is free from silicone and halogens. It is suitable for machine tools and factory automation systems.
3 m PUR cable
M8 plug to M12 socket
Straight M8 plug
Angled M12 socket
3 × 0.34 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Industrial automation
Machine tools
Factory automation
Sensor connections
Actuator connections
Robotics
Production equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC463 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOAH030MSS0003H03STGF030MSS |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 4.3 mm |
| Conductor | 3 × 0.34 mm² |
| Connector A | M8 plug |
| Connector B | M12 socket |
| Plug Design | Straight |
| Socket Design | Angled |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
