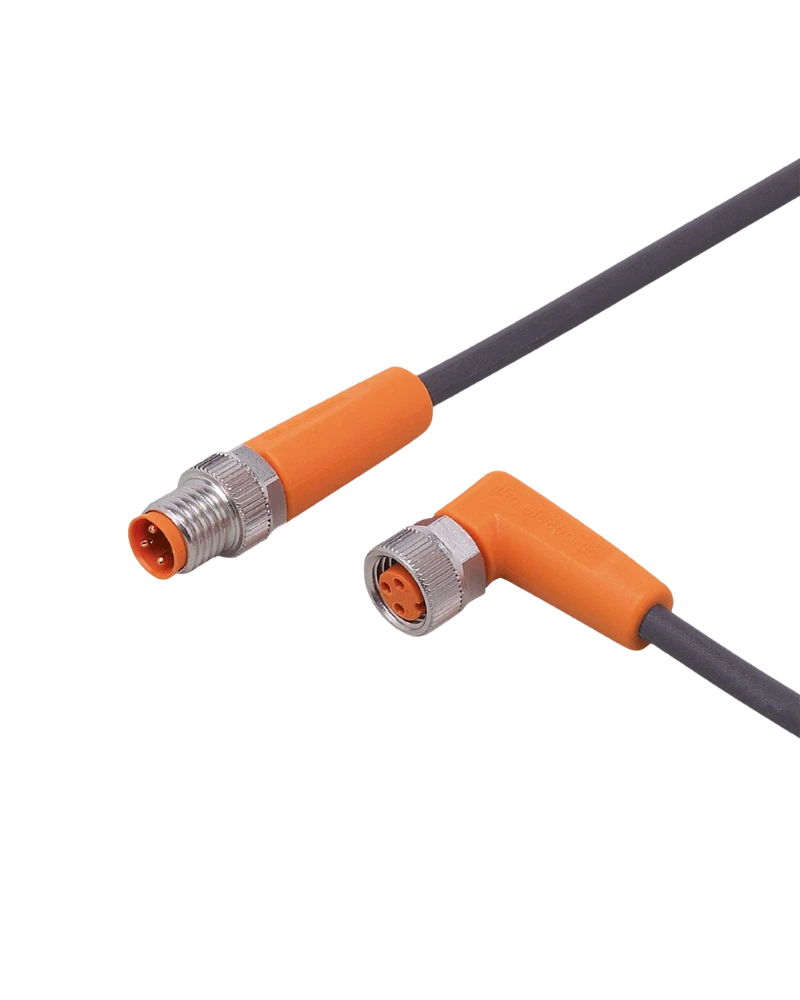

IFM EVC462 is a 3 m M8 connection cable designed for dependable connectivity in industrial automation systems. It features a straight M8 plug and angled M8 socket for flexible machine installation. Its PUR cable, gold-plated contacts and high protection rating support reliable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Industrial Connectivity
EVC462 provides dependable connections between industrial sensors, actuators and automation equipment. The M8 connector arrangement supports easy integration into machine systems. Gold-plated contacts help maintain stable electrical signal transmission. It is suitable for factory automation applications.
Flexible 3 m Cable
The 3 m PUR cable provides useful reach for machine installations. Its flexible construction supports convenient routing around equipment. PUR provides resistance to mechanical wear and industrial conditions. The cable is suitable for fixed and moving applications.
Angled Socket Design
The angled M8 socket helps simplify cable routing in confined spaces. The straight plug provides convenient connection to compatible equipment. This arrangement helps reduce excessive bending near connection points. The locking mechanism supports a secure connection.
Harsh Environment Protection
EVC462 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. Silicone-free and halogen-free construction supports industrial use. It is suitable for demanding machine-tool environments.
3 m PUR cable
M8 straight plug
M8 angled socket
3 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Vibration and shock resistant
Industrial automation
Machine tools
Factory automation
Sensor connections
Actuator connections
Robotic systems
Production machinery
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC462 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOAF030MSS0003H03STGF030MSS |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 3 × 0.25 mm² |
| Connector A | M8 plug |
| Connector B | M8 socket |
| Plug Design | Straight |
| Socket Design | Angled |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
