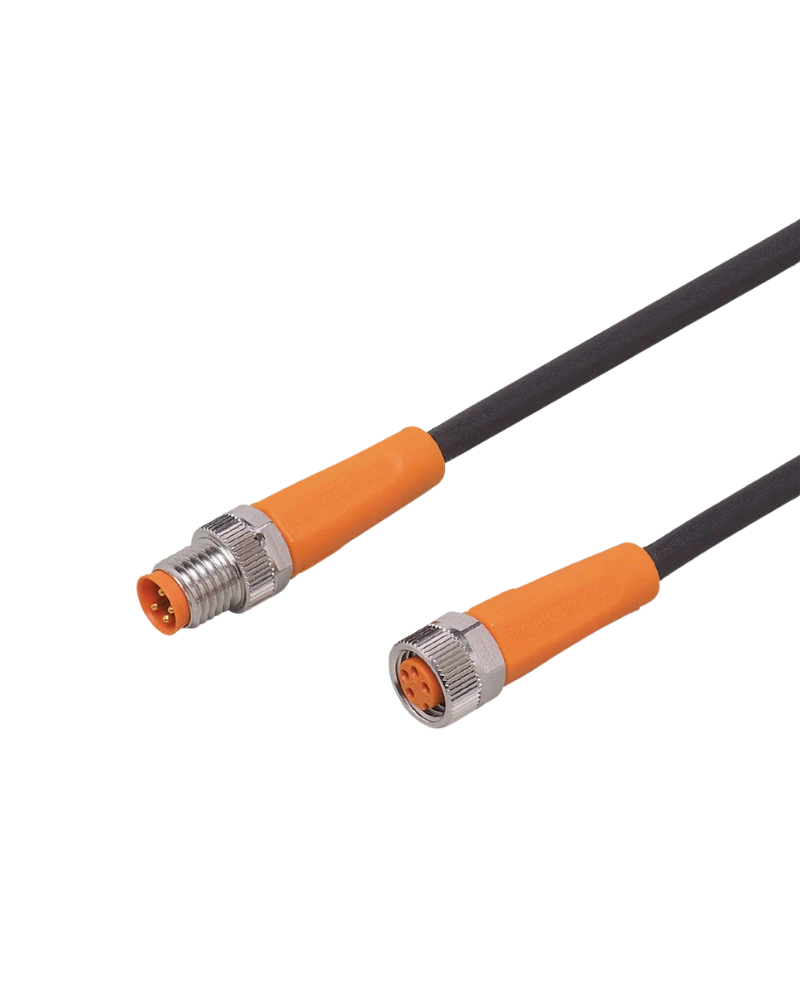

IFM EVC461 is a 4 m M8 connection cable designed for reliable industrial automation connectivity. It features straight M8 plug and socket connectors with gold-plated contacts. The PUR cable provides flexibility, durability and reliable protection for sensors, actuators and machine automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M8 Connection
EVC461 provides stable connectivity between compatible industrial automation components. Straight M8 connectors support easy installation and secure connection. Gold-plated contacts help provide reliable electrical signal transmission. It is suitable for sensor and actuator applications.
Extended 4 m Cable
The 4 m cable provides additional reach for machine and production-line installations. PUR construction offers flexibility and resistance to mechanical stress. It allows convenient routing across larger machine assemblies. The black cable sheath supports industrial installation.
Durable Construction
The cable is designed to withstand vibration and shock during industrial operation. Brass, nickel-plated locking components help secure the connectors. The FKM sealing material supports reliable environmental protection. The cable is suitable for demanding industrial conditions.
Environmental Protection
EVC461 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants and is free from silicone and halogens. This makes it suitable for industrial machinery and factory automation environments.
4 m PUR cable
M8 plug and M8 socket
Straight / straight design
3 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
Vibration and shock resistant
Industrial automation
Factory automation
Machine tools
Sensor connections
Actuator wiring
Robotics
Production machinery
Industrial control equipment
| Specification | Details |
|---|---|
| Product Code | EVC461 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS0004H03STGF030MSS |
| Cable Length | 4 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 3 × 0.25 mm² |
| Connector A | M8 plug |
| Connector B | M8 socket |
| Connector Design | Straight / Straight |
| Number of Contacts | 3 |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
