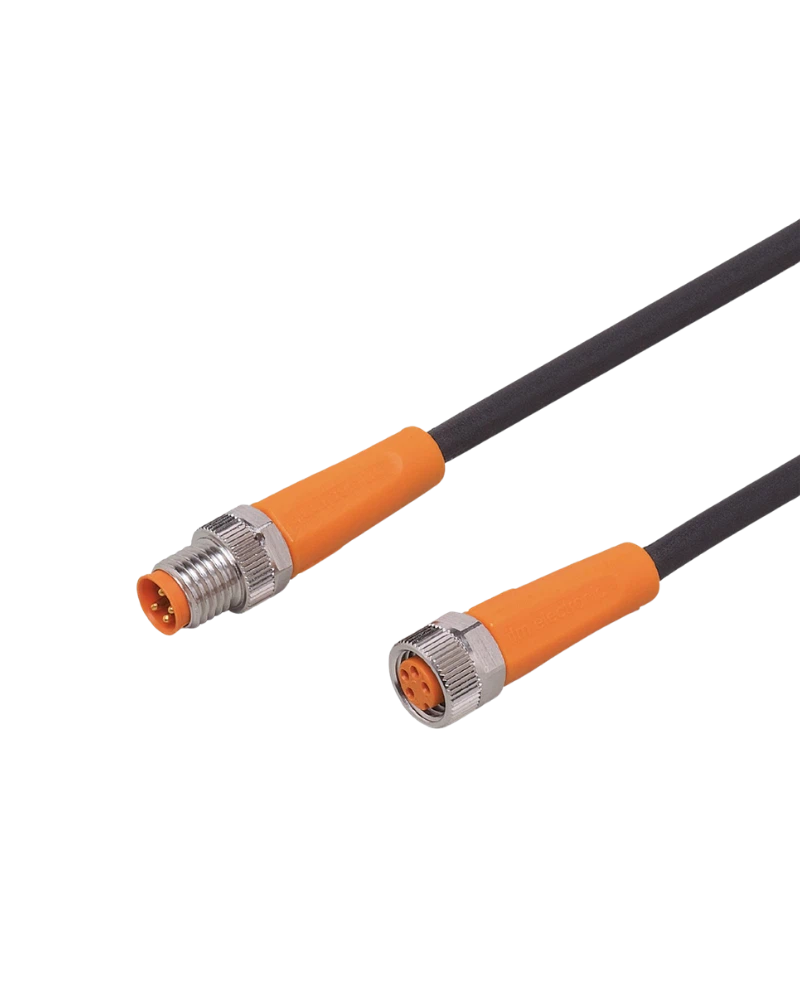

IFM EVC460 is a compact 0.2 m M8 connection cable designed for short-distance industrial automation connections. It features straight M8 plug and socket connectors with gold-plated contacts. The PUR cable provides reliable connectivity while maintaining flexibility in compact machine installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Compact Automation Connection
EVC460 is designed for connecting automation components positioned close to each other. Its compact 0.2 m length helps reduce excess cable in machine installations. Straight M8 connectors provide simple and convenient connection. Gold-plated contacts support dependable electrical performance.
Four-Conductor Design
The cable contains four 0.25 mm² conductors for suitable signal and control connections. The M8 connector configuration provides compact connectivity for industrial sensors and equipment. Its design is suitable for machine-level wiring. It supports clean and organized cable routing.
Durable PUR Cable
The PUR cable offers flexibility and resistance to mechanical wear. Its compact construction is suitable for installations where space is limited. The cable is halogen-free and silicone-free. This makes it appropriate for demanding industrial environments.
High Protection
EVC460 provides IP65, IP67, IP68 and IP69K protection. It is resistant to dust, water, oils and coolants. The locking mechanism helps maintain a secure connection. Drag-chain suitability provides additional flexibility for moving applications.
0.2 m cable length
M8 plug and M8 socket
Straight / straight connectors
4 × 0.25 mm² conductors
Gold-plated contacts
PUR cable construction
50 V AC / 60 V DC
3 A current rating
IP65 / IP67 / IP68 / IP69K
Halogen-free
Silicone-free
Drag-chain suitable
High bending-cycle capability
Industrial automation
Sensor connections
Actuator connections
Machine tools
Factory automation
Robotic equipment
Control systems
Compact machine wiring
| Specification | Details |
|---|---|
| Product Code | EVC460 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF040MSS00,2H04STGF040MSS |
| Cable Length | 0.2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 4 × 0.25 mm² |
| Connector A | M8 plug |
| Connector B | M8 socket |
| Connector Design | Straight / Straight |
| Number of Contacts | 4 |
| Coding | A |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| cULus Temperature | Up to 85 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
