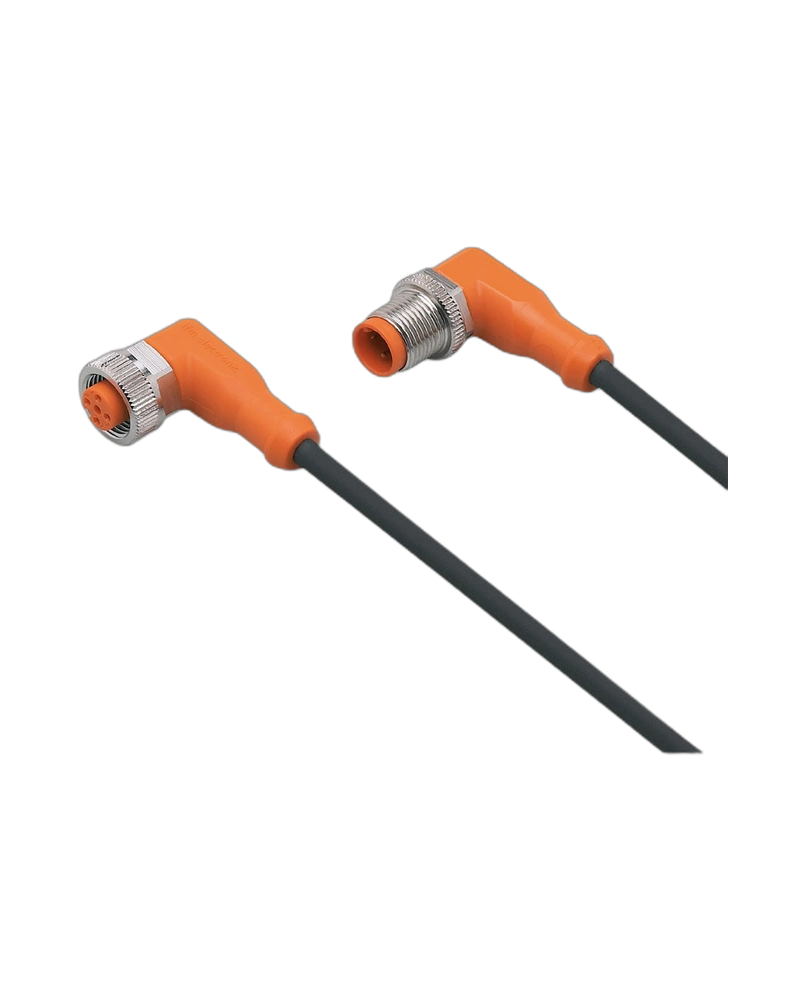

IFM EVC458 is a 2 m M12 connection cable designed for reliable connectivity between industrial automation components. It features angled M12 plug and socket connectors with gold-plated contacts. The PUR cable provides flexibility, durability and resistance to demanding industrial conditions. It is suitable for sensors, actuators and machine automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M12 Connectivity
EVC458 provides dependable electrical connections between compatible industrial automation devices. Its M12 plug and socket configuration supports secure machine-level connectivity. Gold-plated contacts help maintain reliable signal transmission. It is suitable for industrial sensors, actuators and control equipment.
Flexible Cable Construction
The 2 m PUR cable provides useful reach for machine installations. PUR offers good flexibility and resistance to mechanical wear. The cable can be routed around machinery while maintaining reliable performance. Its black outer sheath is suitable for industrial installations.
Angled Connector Design
Both connectors use an angled design to support convenient cable routing. This configuration is useful where installation space is limited. It helps reduce unnecessary bending near connection points. The locking mechanism provides a secure connection during machine operation.
Industrial Protection
EVC458 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants and designed for demanding industrial environments. The cable is also free from silicone and halogens. This supports reliable operation in production and machine-tool applications.
2 m PUR cable
M12 plug and M12 socket
Angled / angled connector design
5 × 0.34 mm² conductors
Gold-plated contacts
60 V AC / 60 V DC operation
4 A current rating
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Halogen-free construction
Silicone-free construction
Drag-chain suitable
Vibration and shock resistant
Industrial automation systems
Factory automation equipment
Machine tools
Sensor connections
Actuator connections
Robotic machinery
Production equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC458 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOAH050MSS0002H05STAH050MSS |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductor | 5 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Connector A | M12 plug |
| Connector B | M12 socket |
| Connector Design | Angled / Angled |
| Number of Contacts | 5 |
| Electrical Design | AC/DC |
| Operating Voltage | 60 V AC / 60 V DC |
| Current Rating | 4 A |
| cULus Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | Viton |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
