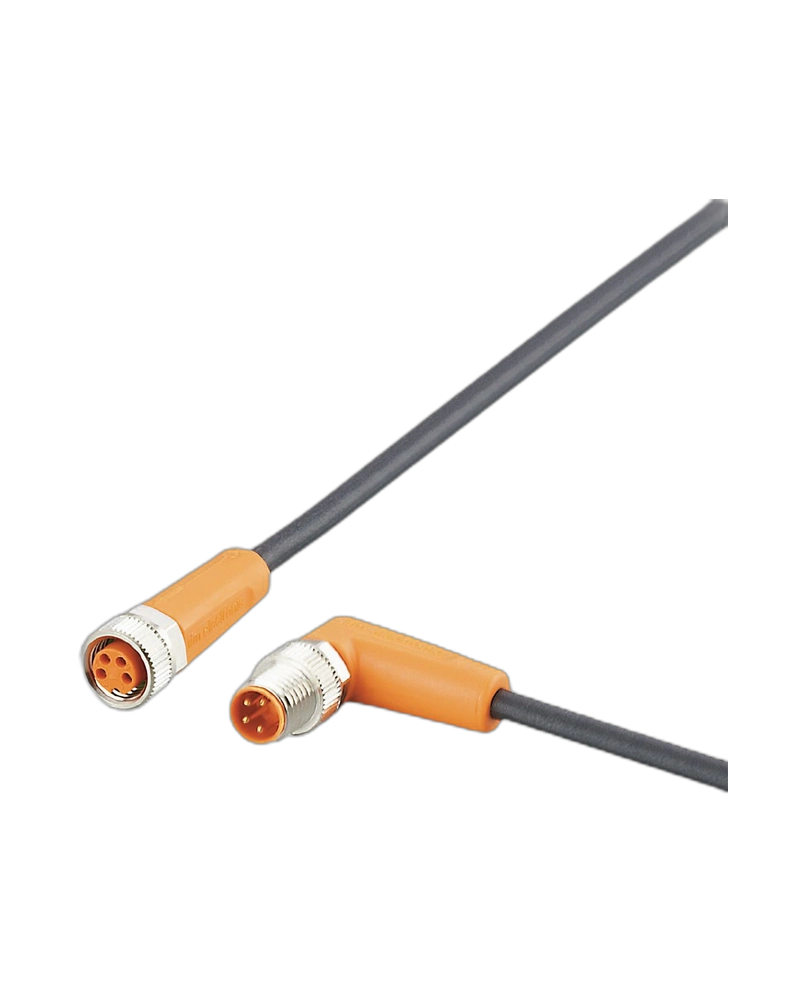

IFM EVC457 is a 3 m industrial connection cable designed for dependable automation connectivity. It uses a PUR cable with a right-angle M8 male connector and straight M8 female connector. Gold-plated contacts, durable construction and high ingress protection support reliable operation in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Automation Connectivity
EVC457 provides dependable electrical connectivity between compatible automation components. Its connector configuration supports sensor, actuator and control applications. Gold-plated contacts help maintain reliable signal transmission. The cable is designed for industrial automation systems.
3 m Extended Cable
The 3 m cable length provides additional flexibility for machine and production-line installations. PUR construction provides mechanical strength and flexibility. The black cable jacket supports industrial use. It is suitable for longer cable routing requirements.
Right-Angle M8 Plug
The right-angle M8 male connector helps simplify cable routing around machinery. The straight female connector provides convenient connection to compatible equipment. This design is useful where installation space is limited. It can help reduce excessive bending at the connection point.
Protection for Industrial Environments
EVC457 provides IP65, IP67, IP68 and IP69K protection. The cable is resistant to oils and coolants and uses halogen-free construction. Gold-plated contacts support reliable electrical performance. Its robust design is suitable for demanding automation environments.
3 m PUR cable
M8 right-angle male connector
M8 straight female connector
4-pin M8 connection
4 × 0.25 mm² cable
Gold-plated contacts
60 V class connection
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain suitable
High bending-cycle capability
Industrial automation
Factory automation
Robotic systems
Machine tools
Sensor and actuator connections
Automated production lines
Industrial control equipment
Machine wiring systems
| Specification | Details |
|---|---|
| Product Code | EVC457 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF040MSS0003H04STAF040MSS |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 4 × 0.25 mm² |
| Connector A | M8 male |
| Connector A Design | Right angle |
| Connector B | M8 female |
| Connector B Design | Straight |
| Number of Contacts | 4 |
| Electrical Design | AC/DC |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
