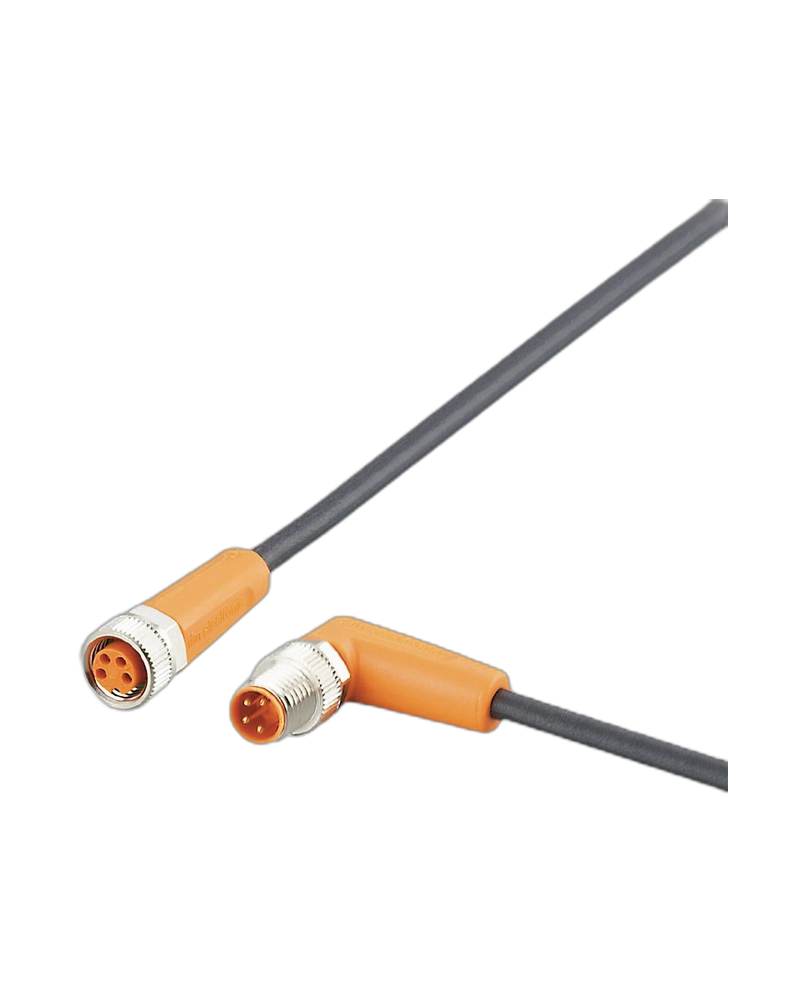

IFM EVC456 is a 2.5 m, 4-pin M8 connection cable designed for reliable industrial automation and machine connectivity. It features a right-angle M8 male connector and straight M8 female connector. Its PUR construction, gold-plated contacts and high IP protection make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable 4-Pin M8 Connection
EVC456 provides dependable connectivity between compatible industrial automation components. Its 4-pin M8 configuration is suitable for sensor, actuator and communication connections. Gold-plated contacts support stable signal transmission. The connector arrangement provides practical machine integration.
Extended 2.5 m Cable
The 2.5 m cable length provides additional reach across machine assemblies and automation equipment. PUR provides flexibility and mechanical durability. The black jacket supports industrial installation. It is suitable for applications where longer cable routing is required.
Right-Angle Connector
The right-angle M8 male connector helps reduce cable-routing space around connection points. The straight female connector provides convenient equipment connection. This arrangement is useful in confined machine spaces. It can help maintain organized cable routing.
Industrial Protection
EVC456 provides IP65, IP67, IP68 and IP69K protection. It is designed to withstand oils, coolants, vibration and industrial operating conditions. The connector locking mechanism supports secure installation. This makes it suitable for demanding automation systems.
2.5 m PUR cable
4-pin M8 connectors
Right-angle M8 male connector
Straight M8 female connector
4 × 0.25 mm² cable
Gold-plated contacts
60 V operating class
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Halogen-free
Silicone-free
Drag-chain compatible
Industrial automation
Robotics
Machine tools
Factory automation
Sensor connections
Actuator wiring
Automated production equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC456 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF040MSS02,5H04STAF040MSS |
| Cable Length | 2.5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductor | 4 × 0.25 mm² |
| Connector A | M8 male |
| Connector A Design | Right angle |
| Connector B | M8 female |
| Connector B Design | Straight |
| Number of Contacts | 4 + 4 |
| Voltage | 60 V |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Jacket Material | PUR |
| Housing Material | TPU |
| Sealing | FKM |
| Standards / Approvals | CE, cULus, UKCA |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Drag Chain Suitability | Yes |
| Pack Quantity | 1 pc |
