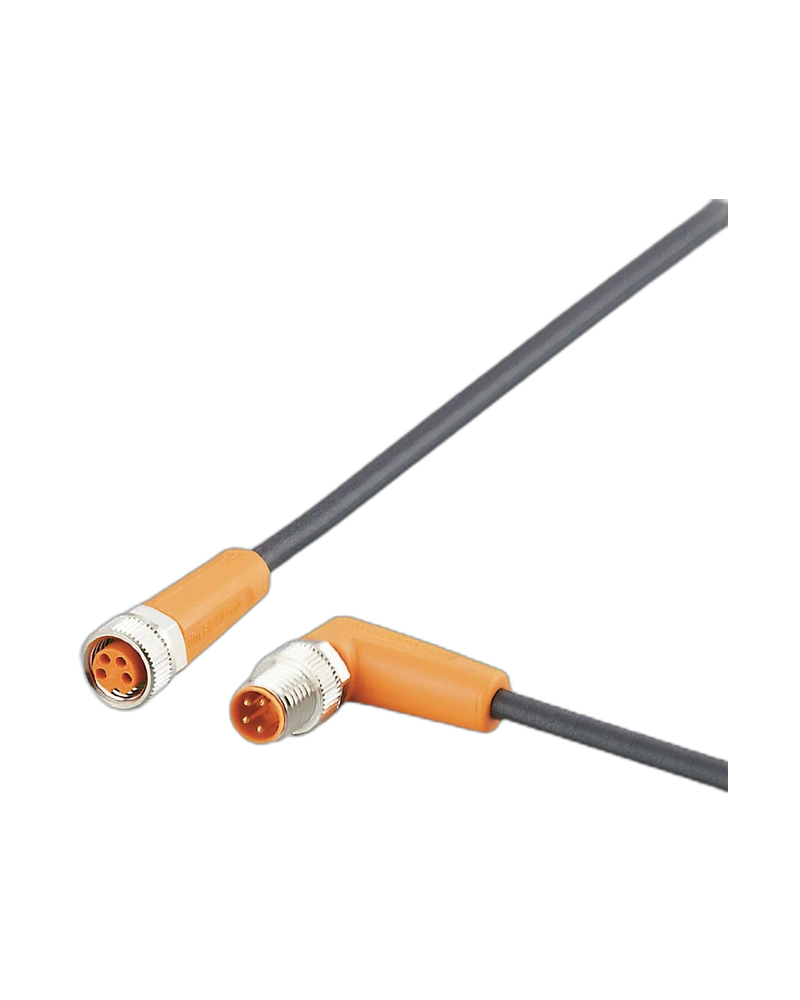

IFM EVC455 is a 2 m, 4-pin M8 connection cable designed for reliable industrial automation connectivity. It features an angled M8 plug and straight M8 socket configuration. The PUR cable provides flexible routing, mechanical durability and high protection for demanding machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
4-Pin M8 Connectivity
EVC455 provides reliable connectivity between compatible industrial automation components. Its 4-pin M8 configuration supports signal and control connections in automation equipment. The connector assembly is designed for secure industrial installation. Gold-plated contacts support reliable electrical performance.
Extended 2 m Cable
The 2 m cable length provides sufficient reach for many machine and production applications. PUR construction offers flexibility and durability. The black cable sheath supports practical industrial installation. It can be routed around machine components.
Angled Plug Design
The angled M8 plug helps improve cable routing where space is restricted. The straight socket provides convenient connection to compatible equipment. This arrangement can help reduce cable bending near connection points. It is suitable for compact machine installations.
Harsh Environment Protection
The cable provides IP65, IP67, IP68 and IP69K protection. It is designed for resistance to oils and coolants. Gold-plated contacts and robust connector materials support reliable industrial operation.
2 m PUR cable
4-pin M8 connection
Angled M8 plug
Straight M8 socket
4 × 0.25 mm² conductors
Gold-plated contacts
60 V DC class
AC/DC connection technology
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
Industrial automation
Factory automation
Machine tools
Sensor and actuator connections
Robotic machinery
Production equipment
Control systems
Industrial communication wiring
| Specification | Details |
|---|---|
| Product Code | EVC455 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF040MSS0002H04STAF040MSS |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductor | 4 × 0.25 mm² |
| Connector | M8 plug / M8 socket |
| Connector Design | Angled / Straight |
| Number of Contacts | 4 |
| Electrical Design | AC/DC |
| Operating Voltage | Up to 60 V DC class |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing | FKM |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Pack Quantity | 1 pc |
