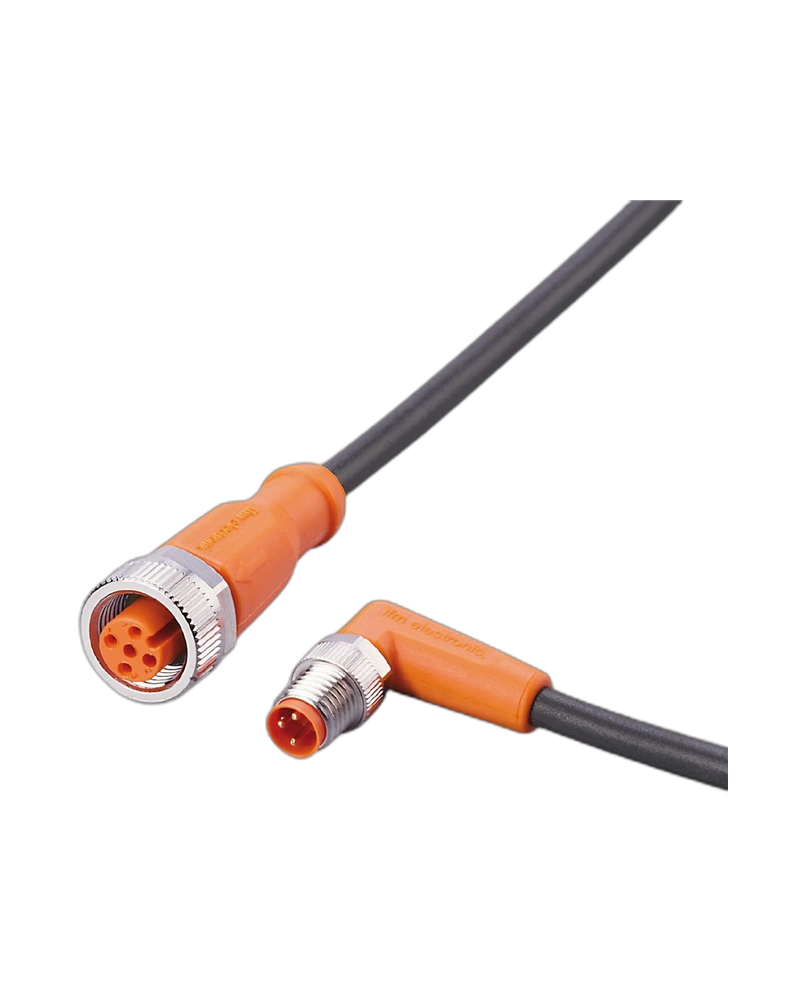

IFM EVC454 is a 2 m connection cable designed for reliable connectivity between industrial automation components. It uses a durable PUR cable with gold-plated contacts and a robust connector assembly. High IP protection and resistance to oils and coolants make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Dependable Automation Connection
EVC454 provides reliable connectivity for compatible industrial automation components. Its connector arrangement supports convenient machine installation. Gold-plated contacts help maintain stable electrical performance. It is suitable for sensors, actuators and automation equipment.
2 m Cable Reach
The 2 m cable provides extended reach for machine and production-line installations. PUR construction provides flexibility and mechanical durability. It can be routed around equipment without compromising installation quality. This makes it suitable for larger machine layouts.
Robust Mechanical Design
The locking mechanism provides resistance to vibration and shock. A mechanical end stop helps prevent damage to the sealing element during installation. The connector assembly is designed for repeated industrial use. This supports dependable machine operation.
Protection Against Harsh Conditions
EVC454 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The cable is also free from silicone and halogens. These properties support use in demanding industrial environments.
2 m PUR cable
Gold-plated contacts
Industrial connection cable
3 × 0.34 mm² conductors
AC/DC electrical design
50 V AC / 60 V DC
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Vibration resistant
Drag-chain suitable
Industrial automation
Factory machinery
Machine tools
Production lines
Sensor connections
Actuator connections
Robotic equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC454 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGH030MSS0002H03STAF030MSS |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 4.3 mm |
| Conductor | 3 × 0.34 mm² |
| Connector | M8 / M12 connection arrangement |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Silicone-free | Yes |
| Halogen-free | Yes |
| Drag Chain Suitability | Yes |
| Ambient Temperature | -25 to 90 °C |
| Pack Quantity | 1 pc |
