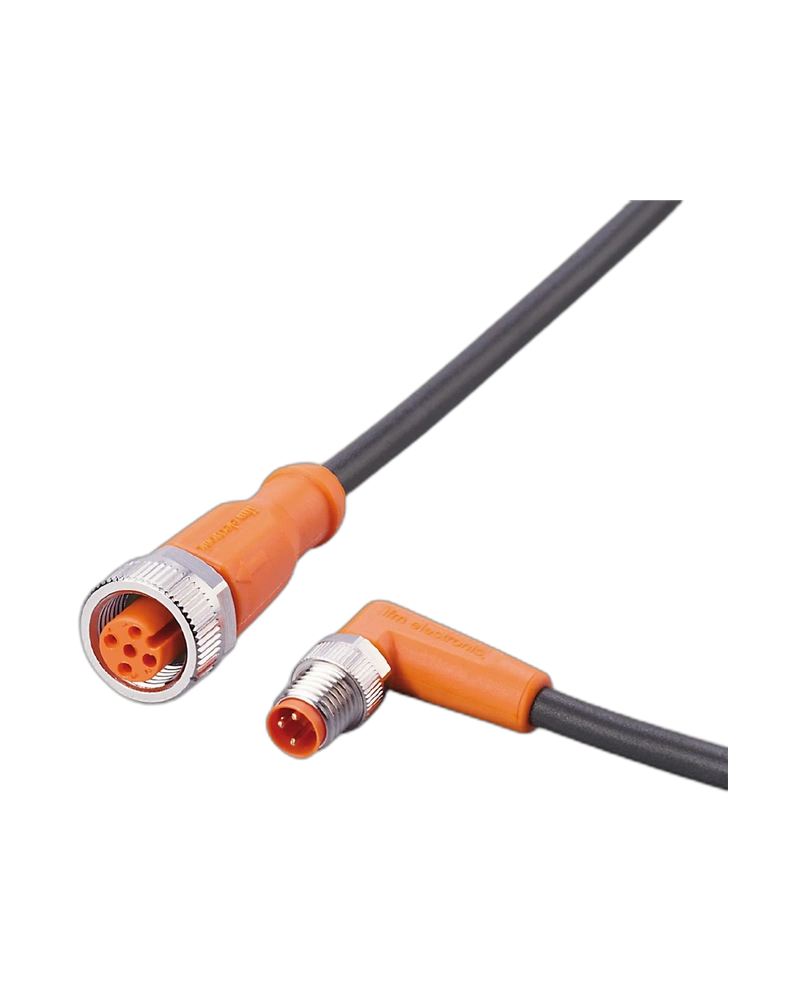

IFM EVC453 is a 1.5 m connection cable designed for reliable industrial automation connectivity. Its PUR cable and robust connector assembly provide flexible installation and dependable electrical performance. Gold-plated contacts and high ingress protection make it suitable for demanding factory automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Industrial Connectivity
EVC453 provides a dependable connection between compatible automation devices. The connector arrangement is designed for practical industrial integration. Gold-plated contacts help provide stable electrical signal transmission. It is suitable for sensors and machine control equipment.
Extended 1.5 m Length
The 1.5 m cable length provides additional reach for machine installations. PUR construction offers flexibility and mechanical durability. It can be routed around machine components while maintaining a clean installation. This makes it suitable for production equipment.
Robust Connector Assembly
The connector locking mechanism helps provide resistance to vibration and shock. The mechanical end stop protects the sealing component during installation. This supports reliable operation over extended periods. The cable is designed for industrial environments.
Harsh Environment Protection
EVC453 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants and uses halogen-free and silicone-free materials. This makes it suitable for demanding industrial applications.
1.5 m PUR cable
Industrial connection cable
Gold-plated contacts
AC/DC design
50 V AC / 60 V DC class
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Vibration resistant
Shock resistant
Drag-chain suitable
Industrial automation
Factory automation
Machine tools
Sensor and actuator connections
Robotic systems
Production machinery
Industrial control systems
Automated equipment
| Specification | Details |
|---|---|
| Product Code | EVC453 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGH030MSS01,5H03STAF030MSS |
| Cable Length | 1.5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductor | 3 × 0.34 mm² |
| Connector Technology | M8 connection |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Silicone-free | Yes |
| Halogen-free | Yes |
| Drag Chain Suitability | Yes |
| Ambient Temperature | -25 to 90 °C |
| Weight | Approx. 72.2 g |
| Pack Quantity | 1 pc |
