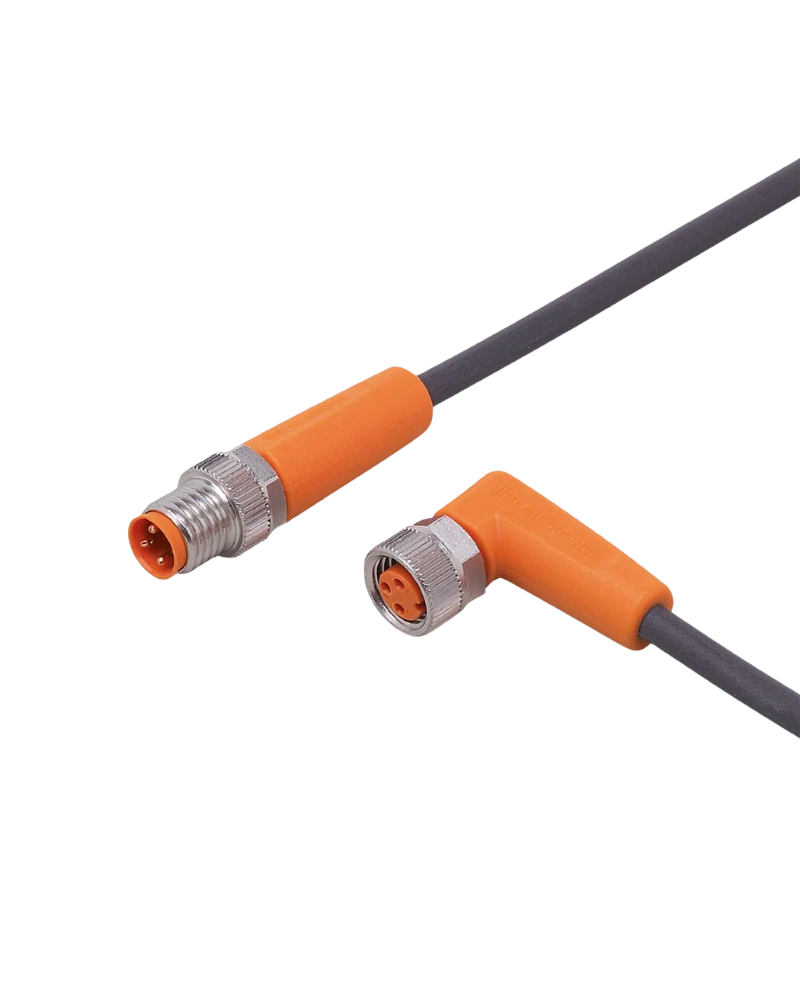

IFM EVC451 is a 0.9 m M8 connection cable designed for reliable connectivity in industrial automation systems. It features a flexible PUR cable with angled and straight M8 connectors. Gold-plated contacts and high IP protection provide dependable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Automation Connectivity
EVC451 provides a dependable connection between industrial sensors, actuators and automation components. The M8 connector configuration allows convenient system integration. Gold-plated contacts support reliable electrical performance. It is suitable for machine and factory automation.
0.9 m Flexible Cable
The 0.9 m cable length provides useful reach for equipment-level installations. The PUR cable offers flexibility and mechanical strength. It supports clean routing around machine components. This makes installation easier in compact automation systems.
Secure Mechanical Connection
The locking connector mechanism helps protect the connection against vibration and shock. The robust TPU housing provides mechanical durability. Gold-plated contacts help maintain consistent connectivity. The cable is designed for continuous industrial operation.
Protection for Harsh Conditions
IP65, IP67, IP68 and IP69K protection helps protect the cable assembly against dust and water. Its construction is resistant to oils and coolants. This makes EVC451 suitable for demanding factory environments.
0.9 m PUR cable
M8 plug and socket
Angled / straight connector arrangement
3 × 0.25 mm² conductors
Gold-plated contacts
AC/DC electrical design
50 V AC / 60 V DC
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
Industrial automation
Factory automation
Machine tools
Sensor connectivity
Actuator wiring
Robotic machinery
Automated production lines
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC451 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOAF030MSS00,9H03STGF030MSS |
| Cable Length | 0.9 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductor | 3 × 0.25 mm² |
| Connector | M8 plug / M8 socket |
| Design | Angled / Straight |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | Viton |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Pack Quantity | 1 pc |
