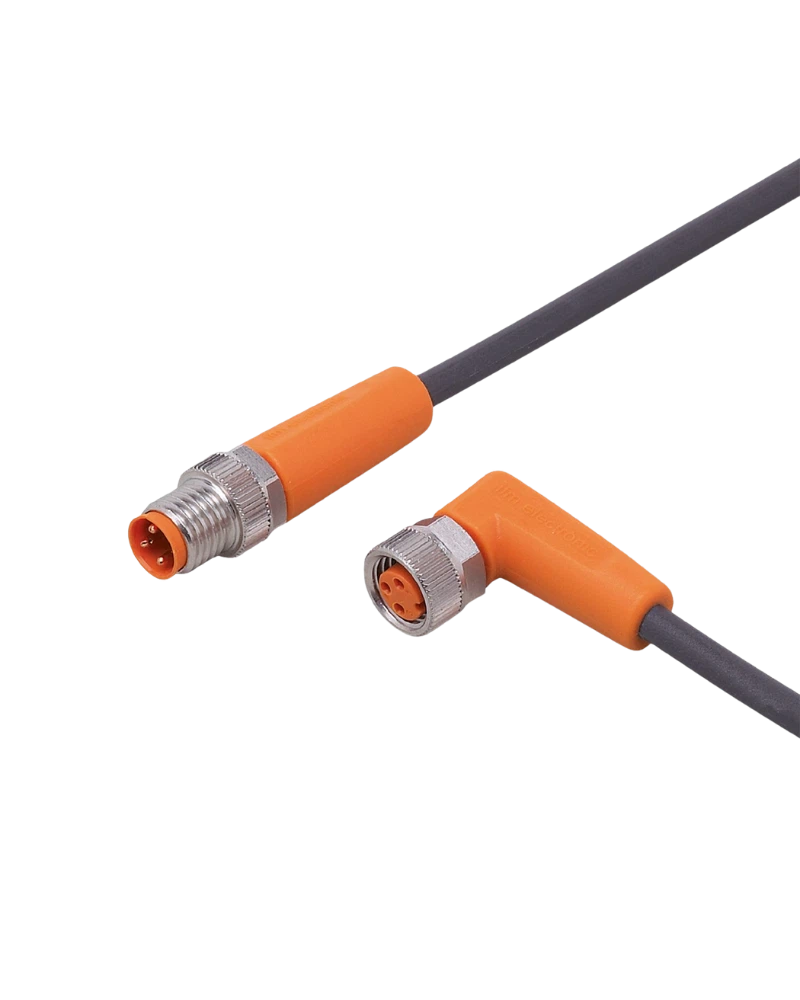

IFM EVC450 is a 0.8 m M8 connection cable designed for reliable industrial automation connections. It uses an angled and straight M8 connector configuration with gold-plated contacts. The PUR cable provides flexibility, durability and strong environmental protection for industrial machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Signal Connection
EVC450 provides stable connectivity between compatible industrial automation devices. Its M8 connector design supports straightforward installation. Gold-plated contacts help maintain dependable signal transmission. It is suitable for sensors and other machine components.
Practical Cable Length
The 0.8 m cable provides convenient reach for machine-level connections. Its PUR jacket provides flexibility while maintaining mechanical durability. The cable can be routed around equipment without unnecessary excess length. This supports organized machine wiring.
Industrial-Grade Construction
The connector assembly is designed for industrial use and provides resistance to vibration and shock. The locking mechanism helps secure the connection during operation. The cable is free from silicone and halogens. It is suitable for demanding manufacturing environments.
Environmental Protection
EVC450 offers IP65, IP67, IP68 and IP69K protection. This provides protection against dust, water and harsh operating conditions. The cable is resistant to oils and coolants. It is suitable for machinery exposed to industrial fluids.
0.8 m PUR cable
M8 plug and socket
Angled / straight configuration
3 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC
AC/DC electrical design
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitability
Factory automation
Industrial machinery
Machine tools
Sensor wiring
Actuator connections
Robotics
Production equipment
Control systems
| Specification | Details |
|---|---|
| Product Code | EVC450 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOAF030MSS00,8H03STGF030MSS |
| Cable Length | 0.8 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductor | 3 × 0.25 mm² |
| Connector | M8 plug / M8 socket |
| Design | Angled / Straight |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | Viton |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Pack Quantity | 1 pc |
