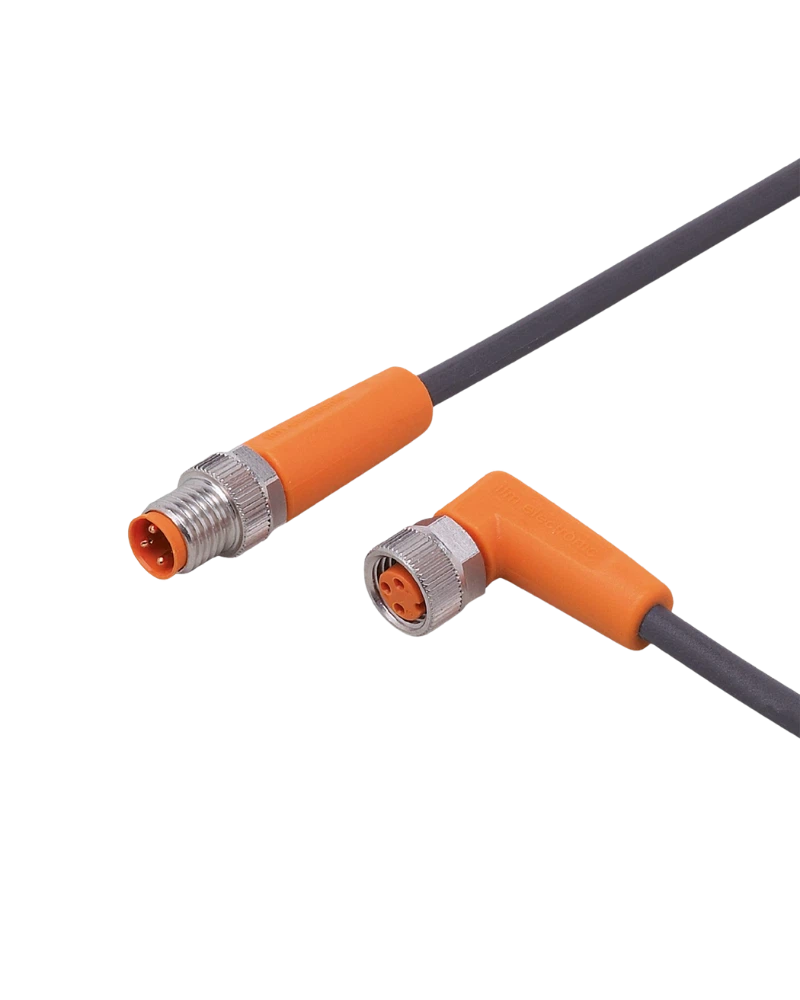

IFM EVC449 is a 0.7 m M8 connection cable designed for dependable connectivity in industrial automation systems. Its angled and straight M8 connector arrangement provides flexible installation in machine environments. The PUR cable offers durability, flexibility and reliable protection for industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Efficient Industrial Connection
EVC449 provides a reliable connection between compatible sensors, actuators and automation equipment. The M8 connector arrangement supports convenient installation. Gold-plated contacts help ensure dependable electrical signal transmission. It is suitable for machine automation applications.
Flexible 0.7 m Cable
The 0.7 m cable length provides additional reach compared with shorter patchcords. PUR construction offers good flexibility and mechanical durability. The cable can be routed around machine components. Its compact form helps maintain clean wiring.
Robust Connector Construction
The connector assembly is designed to withstand vibration and shock during industrial operation. Gold-plated contacts support long-term electrical reliability. The locking mechanism helps maintain a secure connection. The cable is also suitable for demanding machine environments.
High Protection Rating
IP65, IP67, IP68 and IP69K protection helps protect the connection from dust and water ingress. The cable is resistant to oils and coolants. This makes it suitable for industrial equipment where environmental exposure is expected.
0.7 m PUR cable
M8 plug and socket
Angled / straight design
3 × 0.25 mm² conductors
Gold-plated contacts
AC/DC electrical design
50 V AC / 60 V DC
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain compatible
Industrial automation
Machine tools
Factory production equipment
Sensor connections
Actuator connections
Robotic systems
Automation control equipment
Industrial machinery
| Specification | Details |
|---|---|
| Product Code | EVC449 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOAF030MSS00,7H03STGF030MSS |
| Cable Length | 0.7 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductor | 3 × 0.25 mm² |
| Connector | M8 plug / M8 socket |
| Connector Design | Angled / Straight |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | Viton |
| Ambient Temperature | -25 to 90 °C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Pack Quantity | 1 pc |
