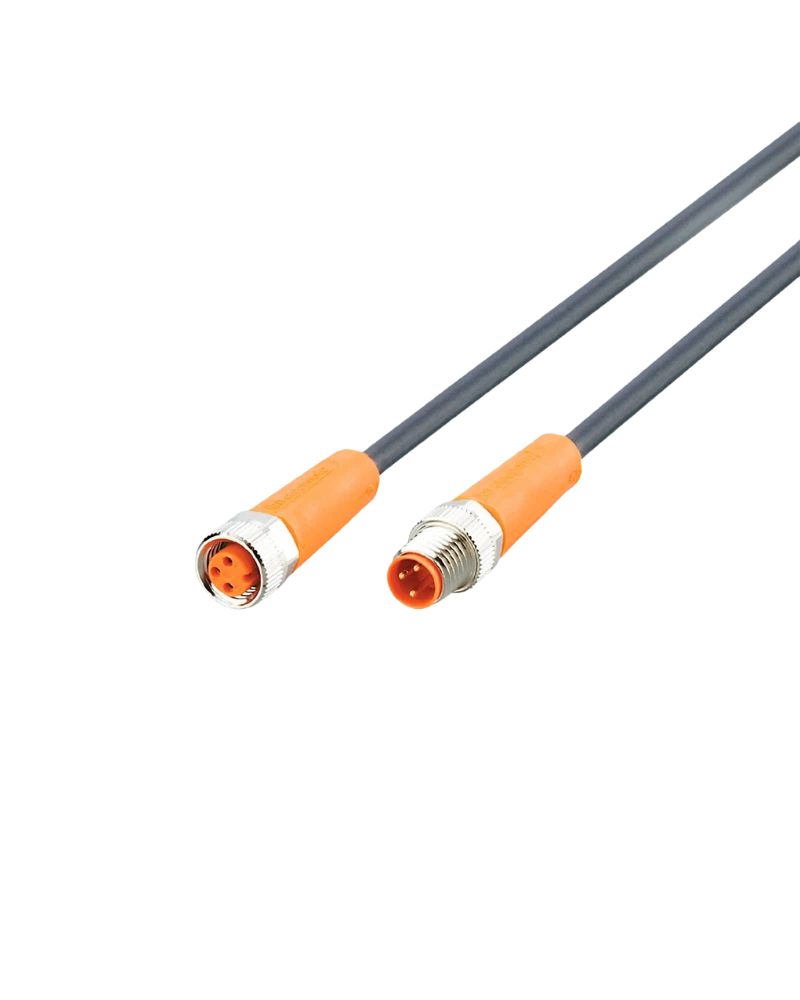

IFM EVC445 is a 0.9 m M8 connection cable designed for reliable industrial automation connectivity. It features straight M8 plug and socket connectors with gold-plated contacts. The PUR cable offers flexibility, durability and high environmental protection for industrial machinery and automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M8 Connectivity
EVC445 provides a dependable connection between industrial automation components. The straight M8 connectors support easy installation and system integration. Gold-plated contacts help provide stable electrical signal transmission. It is suitable for continuous industrial operation.
Compact 0.9 m Cable
The 0.9 m cable provides a convenient connection length for machine-level applications. PUR construction offers flexibility and mechanical strength. The cable can be routed around sensors and automation equipment. Its compact size supports efficient machine wiring.
Protection in Harsh Environments
EVC445 provides IP65, IP67, IP68 and IP69K protection. FKM sealing helps prevent moisture and contamination from affecting the connector interface. The connection is designed to withstand vibration and mechanical stress. This supports reliable operation in industrial environments.
High Flexibility
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter helps reduce mechanical stress. This makes it suitable for automated machinery.
0.9 m PUR cable
M8 straight plug
M8 straight socket
3 × 0.25 mm² conductors
Gold-plated contacts
AC/DC electrical design
50 V AC / 60 V DC operation
Halogen-free construction
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
Drag-chain suitable
High bending-cycle capability
Industrial automation
Factory automation
Machine tools
Sensor connections
Actuator connections
Automated machinery
Robotic systems
Industrial control equipment
| Specification | Details |
|---|---|
| Product Code | EVC445 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS00,9H03STGF030MSS |
| Cable Length | 0.9 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 3 × 0.25 mm² |
| Plug | M8, straight |
| Socket | M8, straight |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM / Viton |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
