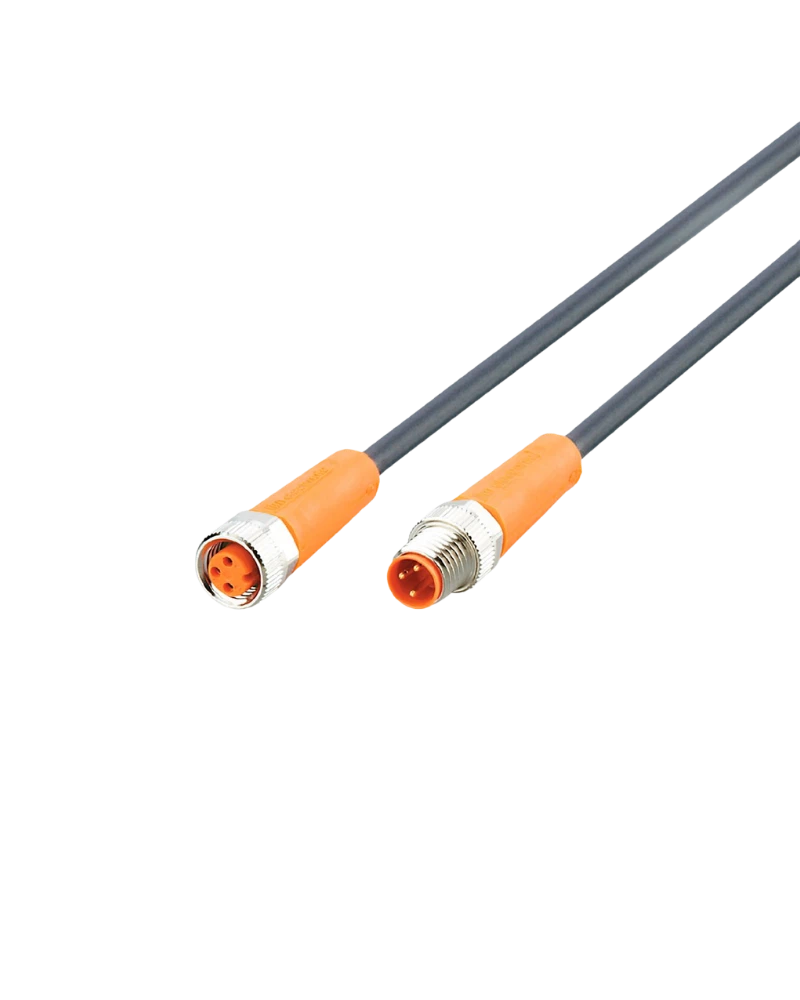

IFM EVC444 is a compact 0.8 m M8 connection cable designed for dependable industrial automation connections. It features straight M8 plug and socket connectors with gold-plated contacts. The flexible PUR cable provides reliable connectivity and protection for industrial sensors, actuators and machine equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Industrial Connection
EVC444 provides a secure connection between compatible automation components. Its straight M8 plug and socket configuration supports simple installation. Gold-plated contacts help maintain dependable electrical connectivity. It is suitable for factory automation systems.
Flexible Cable Design
The 0.8 m PUR cable provides a practical length for machine-level connections. Its flexible construction supports convenient cable routing. The cable is suitable for industrial environments involving oils and coolants. The compact design helps reduce excess cable.
Strong Environmental Protection
EVC444 provides IP65, IP67, IP68 and IP69K protection. FKM sealing supports reliable connector protection in harsh conditions. The robust connection design provides resistance to vibration and shock. This makes it suitable for industrial machinery.
Suitable for Dynamic Applications
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This provides reliable performance in moving machinery.
0.8 m PUR cable
M8 straight plug
M8 straight socket
3 × 0.25 mm² conductors
Gold-plated contacts
AC/DC electrical design
50 V AC / 60 V DC operation
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
Drag-chain suitable
High bending-cycle capability
Industrial automation
Factory machinery
Machine tools
Sensor connections
Actuator connections
Automated production systems
Robotic equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC444 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS00,8H03STGF030MSS |
| Cable Length | 0.8 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 3 × 0.25 mm² |
| Plug | M8, straight |
| Socket | M8, straight |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM / Viton |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Approx. Weight | 36.2 g |
| Pack Quantity | 1 pc |
