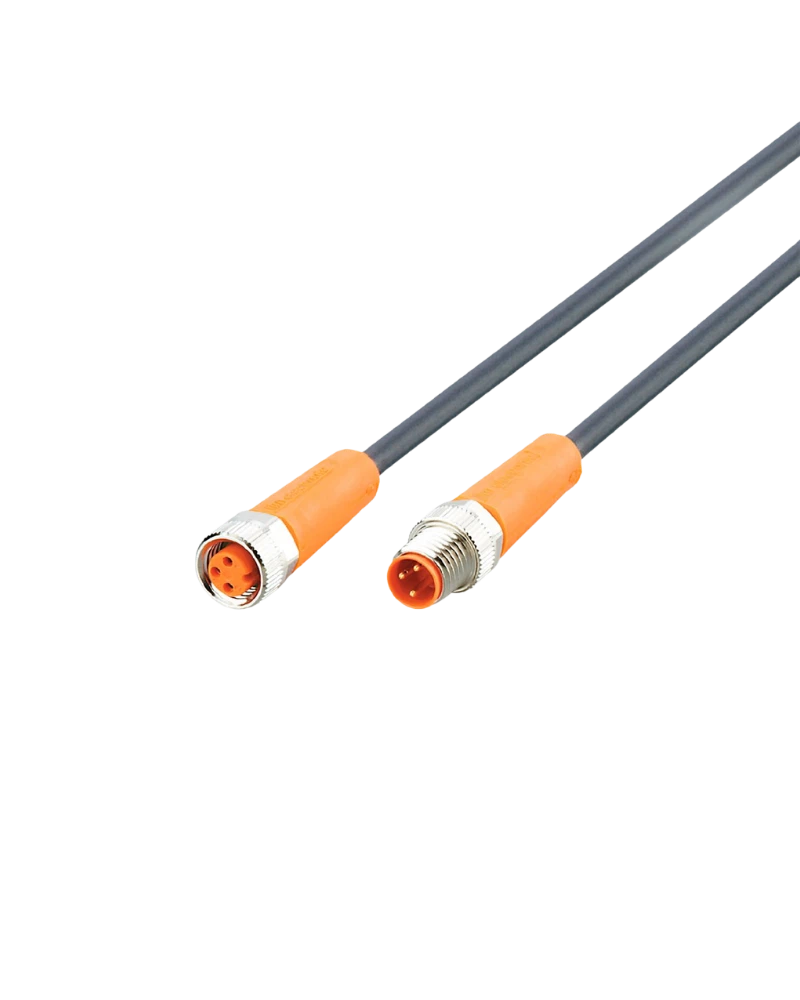

IFM EVC441 is a 0.4 m M8 connection cable designed for dependable connections in industrial automation systems. It features straight M8 plug and socket connectors with gold-plated contacts. The flexible PUR cable offers reliable performance and protection for factory automation and machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Stable Electrical Connection
EVC441 is designed to provide dependable connectivity between compatible industrial sensors and automation components. The M8 plug and socket arrangement supports convenient equipment integration. Gold-plated contacts help maintain reliable electrical performance. It is suitable for continuous industrial operation.
Compact PUR Cable
The 0.4 m cable length provides a practical solution for short-distance connections. PUR construction offers flexibility and mechanical durability. Its compact design makes cable routing easier around machine components. It is suitable for industrial control installations.
Protection Against Industrial Conditions
The cable provides IP65, IP67, IP68 and IP69K protection. FKM sealing helps protect the connector against moisture and contamination. The locking mechanism supports resistance to vibration and shock. This allows reliable use in demanding machine environments.
Suitable for Moving Equipment
EVC441 supports drag-chain applications and repeated cable movement. It provides more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This makes it suitable for automated machinery.
0.4 m PUR cable
M8 straight plug
M8 straight socket
3 × 0.25 mm² conductors
Gold-plated contacts
50 V AC / 60 V DC operation
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain suitable
High bending-cycle performance
Industrial automation
Factory automation
Machine tools
Sensor connections
Control systems
Automated machinery
Robotic equipment
Machine wiring
| Specification | Details |
|---|---|
| Product Code | EVC441 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS00,4H03STGF030MSS |
| Cable Length | 0.4 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 3 × 0.25 mm² |
| Plug | M8, straight |
| Socket | M8, straight |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM / Viton |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
