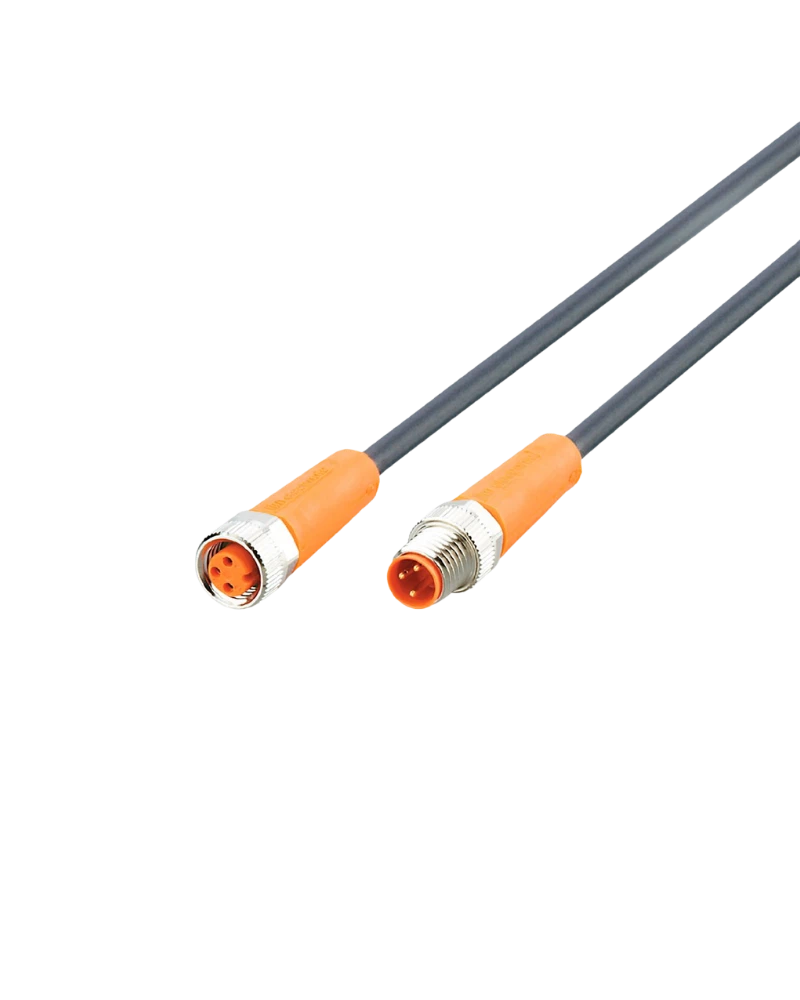

IFM EVC440 is a compact 0.2 m M8 connection cable designed for reliable connections between industrial automation components. It features straight M8 plug and socket connections with gold-plated contacts. The PUR cable provides durable, flexible and protected connectivity for machine and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M8 Connectivity
EVC440 provides a dependable connection between compatible sensors and automation components. Its straight M8 plug and socket configuration supports convenient system integration. Gold-plated contacts help provide stable electrical connectivity. The cable is suitable for industrial automation equipment.
Compact Cable Design
The 0.2 m cable length is suitable for short-distance connections inside machines and control systems. Its compact design helps reduce unnecessary cable length. The PUR construction provides flexibility and mechanical durability. It is suitable for equipment-level connections.
Industrial Protection
EVC440 provides IP65, IP67, IP68 and IP69K protection against demanding environmental conditions. FKM/Viton sealing helps protect the connector interface. The locking mechanism supports resistance to vibration and shock. This makes it suitable for industrial machinery.
Dynamic Performance
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This supports reliable performance in moving machinery.
0.2 m PUR cable
M8 straight plug
M8 straight socket
3 × 0.25 mm² conductors
Gold-plated contacts
AC/DC electrical design
50 V AC / 60 V DC operation
Halogen-free construction
Silicone-free cable
IP65 / IP67 / IP68 / IP69K protection
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Factory automation
Machine tools
Sensor connections
Control equipment
Automated machinery
Robotic equipment
Short-distance machine wiring
| Specification | Details |
|---|---|
| Product Code | EVC440 |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Order Code | VDOGF030MSS00,2H03STGF030MSS |
| Cable Length | 0.2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 3.7 mm |
| Conductor | 3 × 0.25 mm² |
| Plug | M8, straight |
| Socket | M8, straight |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM / Viton |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
