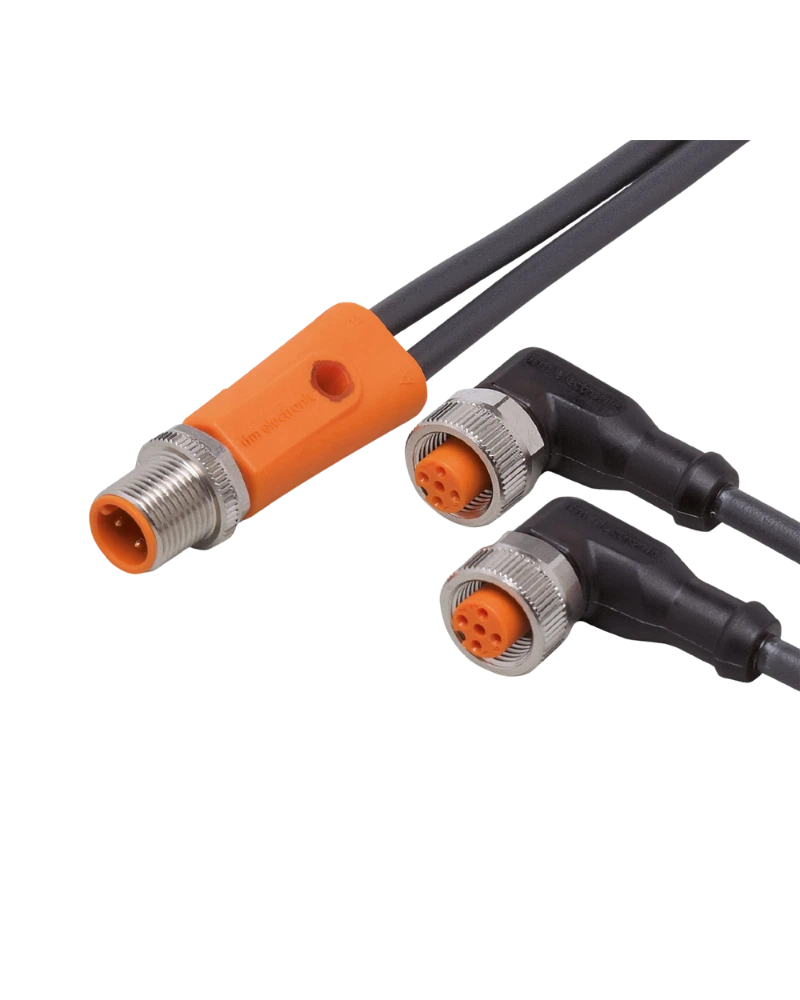

IFM EVC439 is a 5 m Y connection cable designed for signal distribution in industrial automation systems. It features one M12 plug and two M12 sockets with gold-plated contacts and integrated LED indication. The PUR cable provides reliable performance, flexibility and protection in demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Efficient Signal Distribution
EVC439 provides one M12 connection point with two M12 outputs for connecting compatible automation components. Its Y configuration simplifies wiring and signal distribution. Gold-plated contacts support reliable electrical performance. It is suitable for sensor and actuator connectivity.
Extended 5 m Cable
The 5 m cable length provides additional reach for machine and production-line installations. The PUR cable offers flexibility and mechanical strength. Its 3 × 0.34 mm² construction is designed for reliable signal transmission. The cable is suitable for industrial environments.
LED Status Monitoring
EVC439 includes a green power LED and yellow output-status LED. These visual indicators help operators monitor operating conditions. LED feedback can make troubleshooting and maintenance more convenient. This is particularly useful in industrial automation installations.
Harsh Environment Performance
The cable is rated IP65, IP67, IP68 and IP69K. It is suitable for drag-chain applications and supports more than 5 million bending cycles. FKM sealing provides reliable connector protection. The cable is designed for demanding machine environments.
5 m PUR cable
M12 plug with 2 × M12 sockets
DC PNP electrical design
10–36 V DC operating voltage
Green power LED
Yellow output LED
Gold-plated contacts
Halogen-free construction
Silicone-free cable
IP65 / IP67 / IP68 / IP69K protection
Drag-chain compatible
High bending-cycle performance
Industrial automation
Factory automation
Sensor and actuator connections
Signal distribution
Machine tools
Automated production systems
Robotic machinery
Industrial monitoring systems
| Specification | Details |
|---|---|
| Product Code | EVC439 |
| Product Type | Y Connection Cable |
| Manufacturer | IFM |
| Order Code | YDOAH032MSS0005H03STGH040MSS |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 4.3 mm |
| Conductor | 3 × 0.34 mm² |
| Connection | 1 × M12 plug / 2 × M12 sockets |
| Design | 2-way Y connection |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contacts | Gold-plated |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM / Viton |
| Power LED | Green |
| Output LED | Yellow |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
