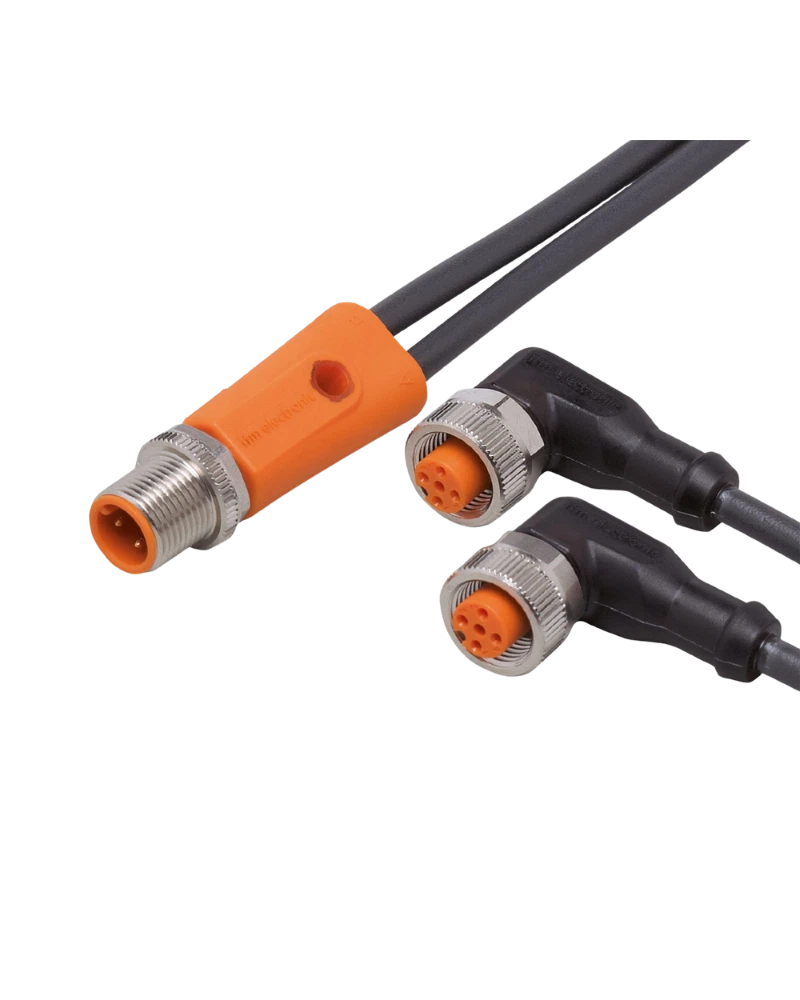

IFM EVC437 is a 1 m Y connection cable designed for signal distribution between M12 automation components. It features an M12 plug, two M12 sockets and integrated LED status indication. Its PUR cable, gold-plated contacts and high protection rating make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Y-Type Signal Distribution
EVC437 allows one M12 connection to interface with two M12 connections. This makes it suitable for distributing signals within industrial automation systems. The Y configuration helps simplify wiring between compatible devices. It is suitable for factory automation and machine applications.
Integrated Status Indication
The cable includes LED indicators for monitoring operating and output status. The green power LED provides power-status indication, while the yellow LED indicates output status. This can make system monitoring more convenient. It provides useful visual feedback during operation.
Durable Industrial Construction
The 1 m PUR cable provides flexibility and mechanical durability. It uses a halogen-free cable construction and gold-plated contacts. The connector body is designed for industrial applications. This supports reliable operation in demanding environments.
Protection and Dynamic Performance
EVC437 provides IP65, IP67, IP68 and IP69K protection. It supports drag-chain applications with more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This makes it suitable for moving automation equipment.
1 m PUR cable
M12 plug with 2 × M12 sockets
3 × 0.34 mm² conductors
Gold-plated contacts
Green power LED
Yellow output-status LED
DC PNP electrical design
10–36 V DC operating voltage
Halogen-free construction
IP65 / IP67 / IP68 / IP69K protection
Drag-chain suitable
High bending-cycle capability
Industrial automation
Factory automation
Sensor signal distribution
Machine tools
IO-Link and sensor-related applications
Automated production machinery
Robotic equipment
Industrial monitoring systems
| Specification | Details |
|---|---|
| Product Code | EVC437 |
| Product Type | Y Connection Cable |
| Order Code | YDOAH032MSS0001H03STGH040MSS |
| Manufacturer | IFM |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.9 mm |
| Conductor | 3 × 0.34 mm² |
| Design | 2-way Y connection |
| Connector Configuration | M12 plug / 2 × M12 socket |
| Plug | M12, 4-pin |
| Socket | M12, 5-pin |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | Viton/FKM |
| LED Indication | Green power LED / Yellow output LED |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Number of Splitter Ports | 2 |
| Weight | Approx. 108 g |
| Pack Quantity | 1 pc |
