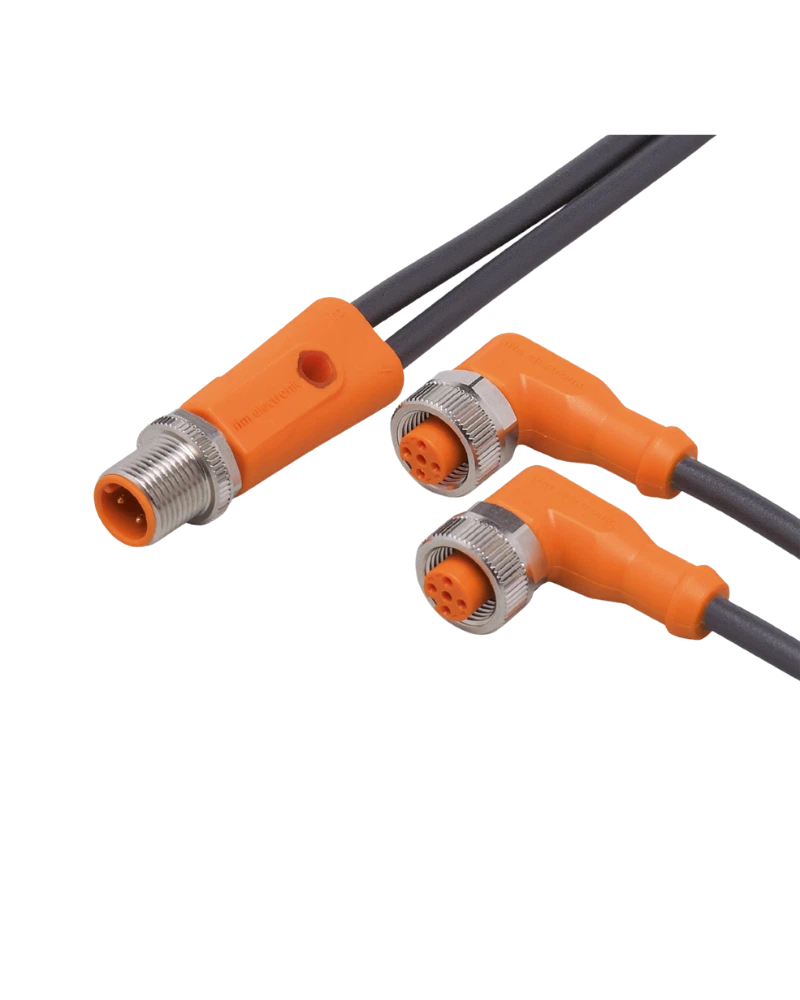

IFM EVC436 is a 5 m Y connection cable designed for reliable signal distribution in industrial automation systems. It features one M12 plug and two M12 angled sockets with gold-plated contacts. The robust PUR cable is suitable for machine tools, factory automation and demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Multi-Connection Solution
EVC436 enables one M12 connection to interface with two M12 devices. This provides an efficient solution for signal distribution within automation systems. Gold-plated contacts support dependable electrical connections. The Y configuration helps simplify machine wiring.
Extended 5 m Reach
The 5 m cable provides extended reach for larger machine installations. Its PUR construction provides flexibility and mechanical durability. The 4 × 0.34 mm² cable supports reliable signal transmission. The black sheath is designed for industrial environments.
Harsh Environment Protection
EVC436 provides IP65, IP67, IP68 and IP69K protection. FKM sealing helps protect connector interfaces from moisture and contamination. The locking system provides resistance to vibration and shock. This makes it suitable for demanding industrial applications.
Designed for Dynamic Machinery
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This provides reliable operation in automated equipment.
5 m PUR cable
1 × M12 straight plug
2 × M12 angled sockets
4 × 0.34 mm² conductors
Gold-plated contacts
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
FKM sealing
Oil and coolant resistant
Drag-chain compatible
High bending-cycle performance
Industrial automation
Factory automation
Machine tools
Signal distribution
Sensor and actuator connections
Automated production machinery
Robotic systems
Industrial control equipment
| Specification | Details |
|---|---|
| Product Code | EVC436 |
| Product Type | Y Connection Cable |
| Order Code | YDOAH040MSS0005H04STGH050MSS |
| Manufacturer | IFM |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.9 mm |
| Conductor | 4 × 0.34 mm² |
| Design | 2-way Y connection |
| Plug | 1 × M12, straight |
| Socket | 2 × M12, angled |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | 60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Number of Splitter Ports | 2 |
| Weight | Approx. 352 g |
| Pack Quantity | 1 pc |
