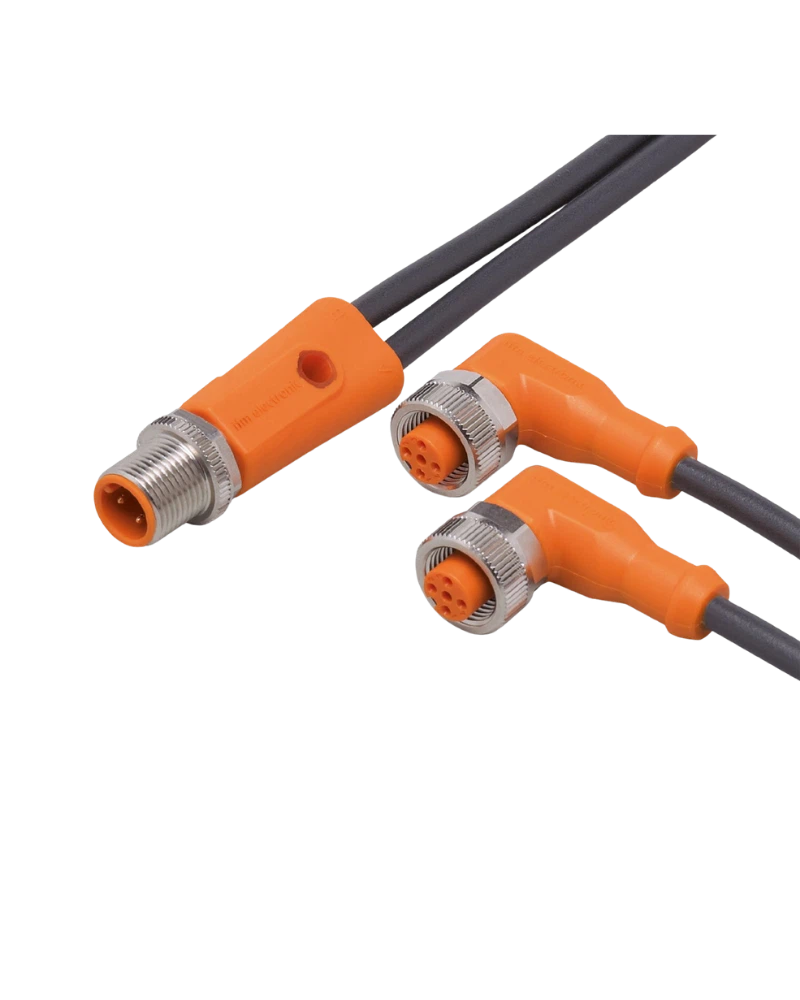

IFM EVC435 is a 2 m Y connection cable designed to distribute signals between multiple M12 automation components. It features one M12 plug and two M12 angled sockets with gold-plated contacts. The PUR cable provides flexibility, durability and reliable protection for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Efficient Signal Distribution
EVC435 provides a practical connection between one M12 interface and two M12 devices. This helps simplify wiring in industrial automation systems. Gold-plated contacts support stable electrical performance. The Y configuration is suitable for sensor and actuator applications.
Durable PUR Construction
The 2 m PUR cable provides flexibility for machine installation. Its halogen-free construction supports industrial requirements. The cable is designed to withstand oils and coolants commonly found around machinery. Its robust design supports continuous operation.
High Protection Performance
EVC435 offers IP65, IP67, IP68 and IP69K protection. FKM sealing helps protect the connection against dust, moisture and contamination. The locking arrangement supports resistance to vibration and shock. It is suitable for harsh industrial environments.
Dynamic Cable Movement
The cable supports drag-chain applications and repeated movement. It is designed for more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This makes it suitable for automated machinery.
2 m PUR cable
1 × M12 straight plug
2 × M12 angled sockets
4 × 0.34 mm² conductors
Gold-plated contacts
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
FKM sealing
Oil and coolant resistant
Drag-chain suitable
High bending-cycle performance
Industrial automation
Factory automation
Machine tools
Sensor and actuator connections
Signal distribution systems
Automated production lines
Robotic machinery
Industrial control equipment
| Specification | Details |
|---|---|
| Product Code | EVC435 |
| Product Type | Y Connection Cable |
| Order Code | YDOAH040MSS0002H04STGH050MSS |
| Manufacturer | IFM |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.3 mm |
| Conductor | 4 × 0.34 mm² |
| Design | 2-way Y connection |
| Plug | 1 × M12, straight |
| Socket | 2 × M12, angled |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Number of Splitter Ports | 2 |
| Weight | Approx. 181 g |
| Pack Quantity | 1 pc |
