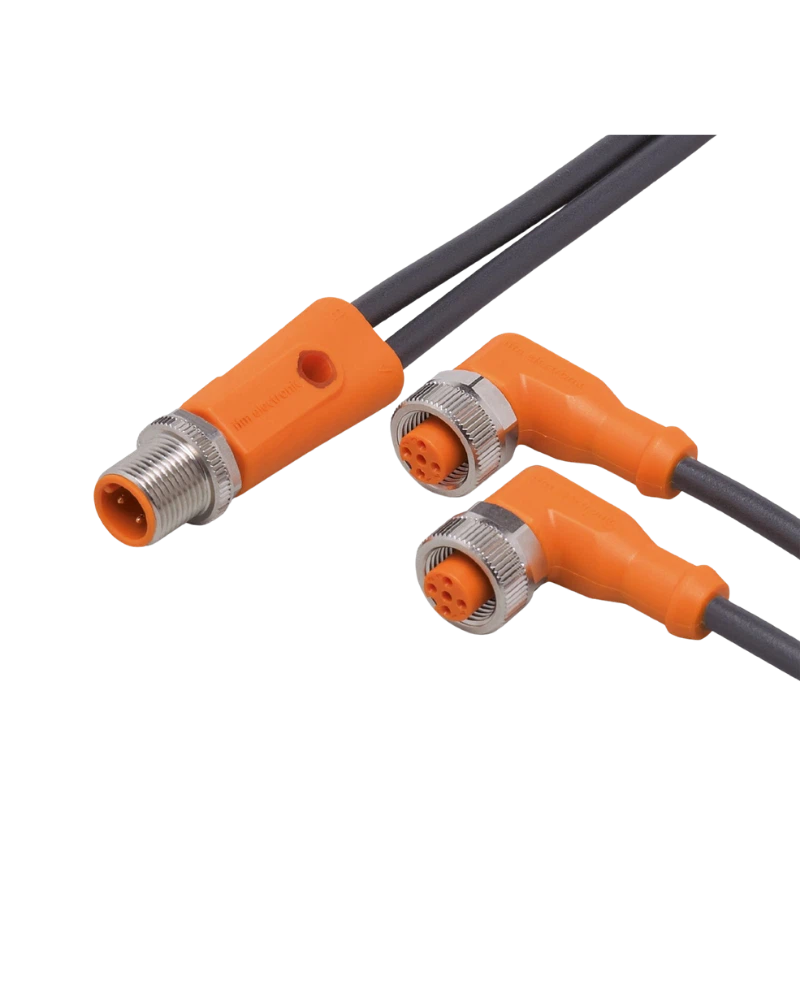

IFM EVC434 is a 1 m Y connection cable designed for distributing signals between M12 automation components. It features one M12 plug and two M12 angled sockets for flexible machine installation. Its PUR construction, gold-plated contacts and FKM sealing provide dependable performance in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Flexible Y Connection
EVC434 allows one M12 connection to interface with two M12 connections. The angled sockets provide additional flexibility when routing cables around machinery. Gold-plated contacts support reliable electrical connectivity. It is suitable for industrial automation applications.
Compact Machine Installation
The 1 m cable length is suitable for short-distance connections within machines. Its angled socket arrangement helps save installation space. The PUR cable provides flexibility and mechanical durability. This makes it practical for compact automation systems.
Reliable Environmental Protection
EVC434 provides IP65, IP67, IP68 and IP69K protection. FKM sealing supports reliable protection against moisture and contaminants. The connector construction is designed for vibration and shock resistance. It is suitable for machine tools and harsh industrial environments.
Suitable for Dynamic Operation
The cable supports drag-chain applications and repeated movement. It provides more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This supports reliable use in moving machinery.
1 m PUR cable
1 × M12 straight plug
2 × M12 angled sockets
4 × 0.34 mm² conductors
Gold-plated contacts
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
FKM sealing
Oil and coolant resistant
Drag-chain compatible
Industrial automation
Factory automation
Machine tools
Sensor signal distribution
Automated production machinery
Robotic systems
Industrial control systems
Compact machine installations
| Specification | Details |
|---|---|
| Product Code | EVC434 |
| Product Type | Y Connection Cable |
| Order Code | YDOAH040MSS0001H04STGH050MSS |
| Manufacturer | IFM |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.3 mm |
| Conductor | 4 × 0.34 mm² |
| Design | 2-way Y connection |
| Plug | 1 × M12, straight |
| Socket | 2 × M12, angled |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Number of Splitter Ports | 2 |
| Weight | Approx. 117.5 g |
| Pack Quantity | 1 pc |
