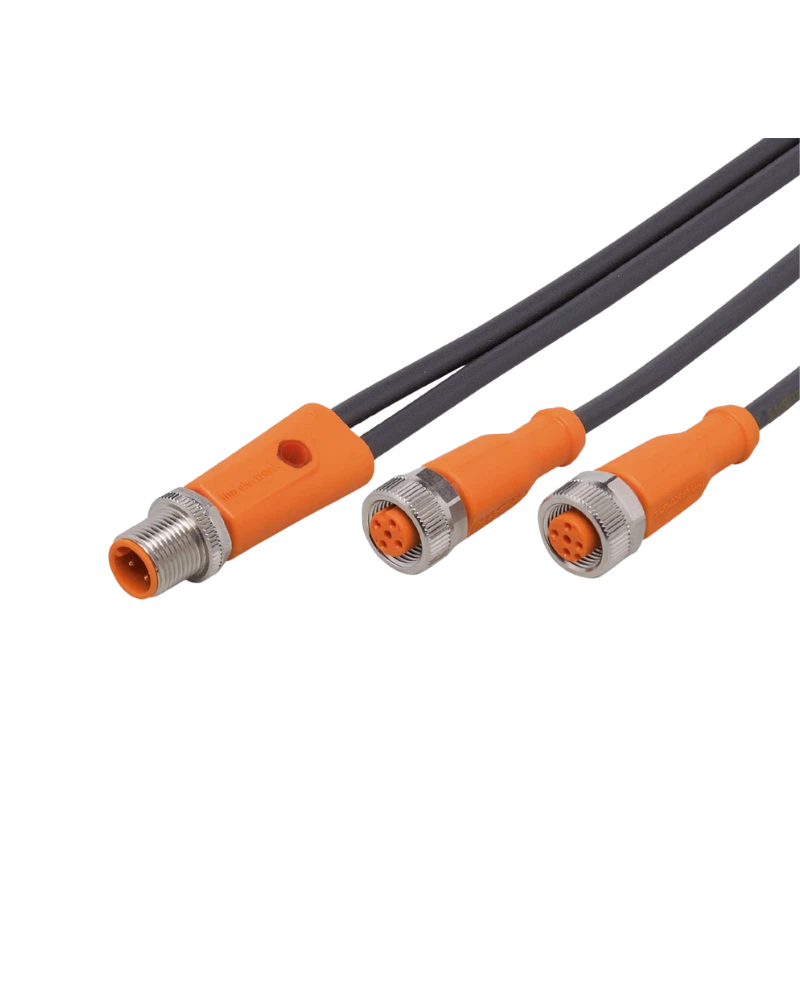

IFM EVC433 is a 5 m Y connection cable designed for reliable signal distribution in industrial automation systems. It features one M12 plug and two M12 sockets with gold-plated contacts. The durable PUR cable is suitable for machine tools, factory automation and demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Y-Type Connection
EVC433 provides a practical way to connect one M12 interface with two M12 devices. This helps simplify wiring and signal distribution in automation systems. Gold-plated contacts support dependable electrical performance. The cable is designed for industrial applications.
Extended 5 m Reach
The 5 m cable provides greater flexibility for machine installations. PUR construction combines flexibility with mechanical durability. The 4 × 0.34 mm² conductor configuration supports reliable signal transmission. The cable is suitable for industrial equipment layouts.
Harsh Environment Protection
EVC433 provides IP65, IP67, IP68 and IP69K protection. FKM sealing helps protect the connection against dust and moisture. The connectors are designed for resistance to vibration and shock. This makes the cable suitable for demanding machine environments.
Dynamic Application Performance
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This helps provide reliable performance in automated machinery.
5 m PUR cable
M12 plug and 2 × M12 sockets
4 × 0.34 mm² conductors
Gold-plated contacts
Halogen-free
Silicone-free
IP65 / IP67 / IP68 / IP69K protection
FKM sealing
Oil and coolant resistant
Drag-chain compatible
High bending-cycle capability
Factory automation
Industrial automation
Machine tools
Sensor and actuator connections
Signal distribution
Automated production lines
Robotic machinery
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EVC433 |
| Product Type | Y Connection Cable |
| Order Code | YDOGH040MSS0005H04STGH050MSS |
| Manufacturer | IFM |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Ø4.9 mm |
| Conductor | 4 × 0.34 mm² |
| Design | 2-way Y connection |
| Plug | 1 × M12, straight |
| Socket | 2 × M12, straight |
| Coding | A |
| Contacts | Gold-plated |
| Operating Voltage | 60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 90°C |
| Moving Temperature | -25 to 90°C |
| Housing Material | TPU |
| Nut Material | Brass, nickel-plated |
| Sealing Material | FKM |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Number of Splitter Ports | 2 |
| Weight | Approx. 347 g |
| Pack Quantity | 1 pc |
